Lenovo ThinkPad X100e Screen Replacement

Written By: Orly Guerra
  • Comments: 1
Lenovo ThinkPad X100e Screen Replacement

Difficulty

Moderate

Steps

10

Time Required

20 minutes

Introduction

This guide is for removing the ThinkPad X100e's LCD display and replacing it with a new one.

  1. WfwrBMerrXr64Mvm
    WfwrBMerrXr64Mvm
    q2sVCLtFKPZnndfs

    • Use a Spudger tool to remove the screw covers on each side of the screen.

    • Be sure not to lose screw covers.

  2. 2W1TxhyLlCLCknYv

    • Using a magnetic screwdriver fit with a PH0 Bit, unscrew the two screws and carefully set the aside.

  3. JoGqHqXwQMpUTKbo

    • Pry open the bezel carefully with the spudger tool.

    • You will want to do this until the frame is completely off.

  4. mgPRWbUMyAfl2Idd

    • Remove all exposed screws and carefully set them aside. There should be 6 visible screws.

    • Be sure to set the screws aside on the magnetic mat.

  5. wSyjDCGtsnjOeYOO

    • Lift the screen up carefully, and remove the screws on both sides of the panel. There should be 4 screws.

    • The other two screws are located in the exact place on the other side.

    • Don't forget to place the screws on the magnetic mat, separate from other screws.

  6. 2lTafhLsHMunlLFl
    2lTafhLsHMunlLFl
    dSXVAt24c3G3TSZU

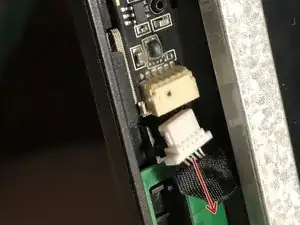

    • Remove the connector located at the very top of the screen beside the webcam.

    • To remove the connector, simply pull the connector out.

  7. 23gwP3H1GRCXa6Og

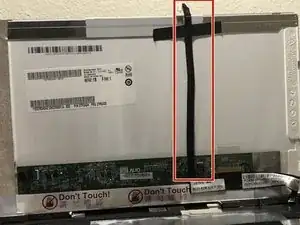

    • Fold the panel over until a strip of black tape is visible.

    • Peel the tape down until you get to the base.

  8. EcHBwwoREYnZqNTH
    EcHBwwoREYnZqNTH
    FjvaJGgoMZDbSXHC

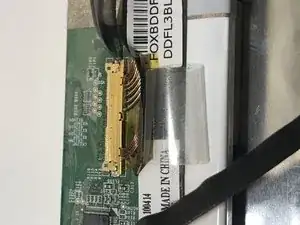

    • Peel the piece of transparent tape back.

    • At this point there should be some exposed wires underneath the tape.

  9. nc2aCPsdexqelYgx

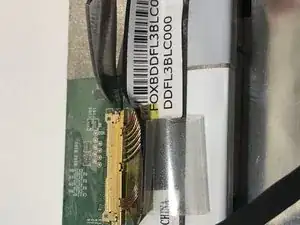

    • Remove the connector carefully with the spudger tool.

  10. fK2HPpCZuCmXhhaY

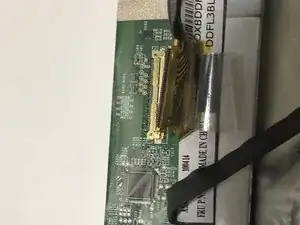

    • Remove the black tape fully.

    • Now your device is ready for a new panel.

Conclusion

To reassemble your device, follow these instructions in reverse order.
