Lenovo ThinkPad X250 Ram / Storage Replacement

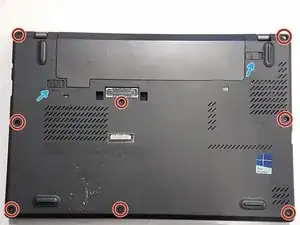

Unscrew the 8 screws holding the back panel in place.

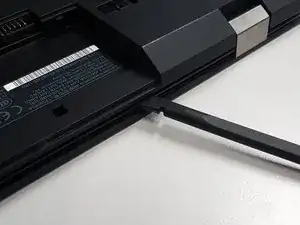

Use a plastic prying tool to release all the clips holding the panel in place.

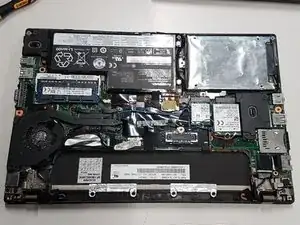

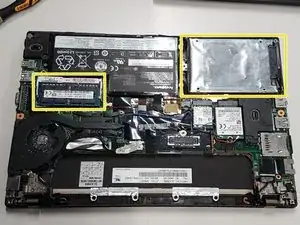

If you Want to Replace the Ram

In the Ram slot Look at the sides You will see 2 metal Clips Pull it on The Reverse side

Then Remove the Ram

Then you will place The Ram and Click it downwards

If you want to replace the HDD / SSD

Unscrew the SSD / HDD placer

Then Remove it and pull the SSD / HDD Placer reverse

And put the SSD / HDD on the Placer

Plug the SATA Connector
