Lenovo ThinkPad X390 Display Replacement

Written By: Colton Horvath
  • Comments: 0
Lenovo ThinkPad X390 Display Replacement

Difficulty

Moderate

Steps

3

Time Required

15 - 25 minutes

Introduction

  1. UPlHXWcM4A2ZT4H3
    UPlHXWcM4A2ZT4H3
    nctWlGI6CGMBjFku
    g6lcTaqYLMlaNLGL

    • Power down and unplug the laptop before proceeding.

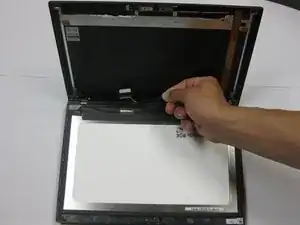

    • Insert an opening tool between the display and display housing.

    • Slide the tool along the perimeter of the screen while gently pushing down on the opening tool to detach the screen.

  2. r1MQ1DpkwmWIerHT

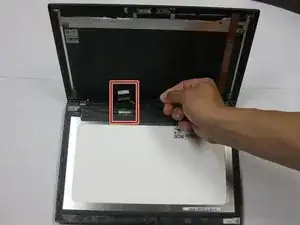

    • Use tweezers to flip up the display plug bar, then pull the plug directly out of its port.

  3. NbNO2itPCxG3oP1J

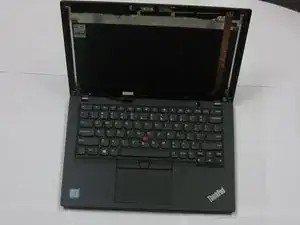

    • Lift the display off the display housing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
