Lenovo Thinkpad T410i LCD Screen Replacement

Written By: Harsh Patel
  • Comments: 0
Lenovo Thinkpad T410i LCD Screen Replacement

Difficulty

Moderate

Steps

7

Time Required

15 - 20 minutes

Introduction

If the LCD screen of your Lenovo ThinkPad T410i is broken or you wish to install a new screen, this guide will show you how to replace and reinstall the screen.

Guide notes

  • This guide is hardware only, and it would not help resolve issues such as screen staying black or screen not responding to input.
  • Unplug the system from the power source (if it is plugged in), and remove the battery before you perform any of the steps.
  • Once you install the new LCD screen, safely dispose the old one.

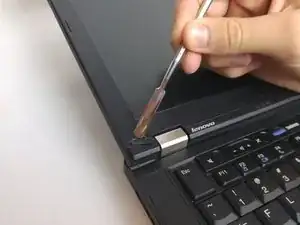

  1. OFjUBjdVyepVmfFE
    OFjUBjdVyepVmfFE
    FxHJweZnFeFXcMZG

    • Use a spudger to remove the plastic covers from the LCD screen.

  2. L3vo3INnFNuMI2hi

    • Remove the two 6.0mm screws on each side using Philips #0 head screwdriver as shown in the picture.

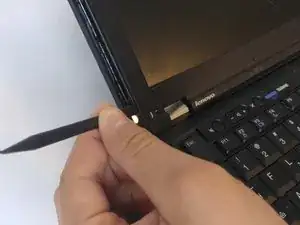

  3. TwXEpN6dwnZgCsVI

    • Use a spudger to separate the bezel of the LCD screen.

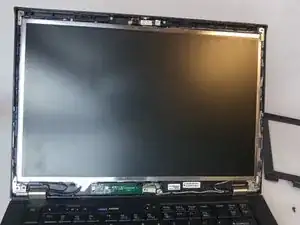

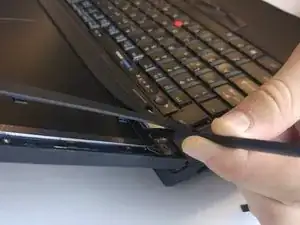

  4. AmQbJBZw2qLNNZei
    AmQbJBZw2qLNNZei
    jJXLFNZkOOCAgAXh
    yJhAt3QmAItWtGIh

    • Continue along the edges lifting up and prying off the plastic LCD bezel.

  5. vxHQCYoCuERSJV5m
    vxHQCYoCuERSJV5m
    Iq2JYMcUft13RoP5

    • Use a Philips #0 head screwdriver to remove the two 6.0mm screws from the top corners of the LCD screen.

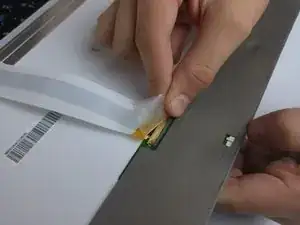

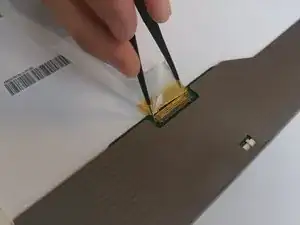

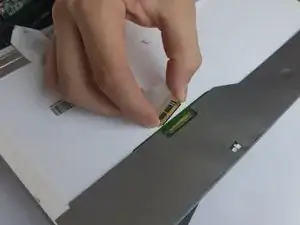

  6. SfXexwEyLPrhrJOT
    SfXexwEyLPrhrJOT
    A4FNEwZLDL2UF23T
    WnKABQCqEZiuSYSc

    • Place the LCD screen safely down on its front.

    • Pulling the screen too far away from the screen may damage delicate ribbon cable.

    • Peel the tape off the ribbon cable's contacts.

    • Carefully detach the ribbon cable from the LCD screen.

    • Poking the golden contacts may easily damage them.

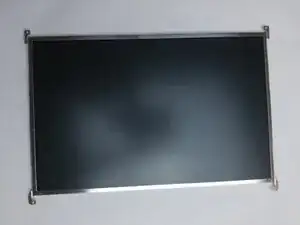

  7. Oqjle4jDTo21gt2J

    • Remove the screen from your device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
