Lenovo Thinkpad T500 Trackpad Buttons Replacement

Written By: nicO
  • Comments: 0
Lenovo Thinkpad T500 Trackpad Buttons Replacement

Difficulty

Moderate

Steps

7

Time Required

No estimate

Introduction

  1. mheeqPENKjoNIl5G

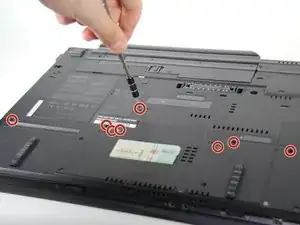

    • Remove the eight 14mm screws using the Phillips #0 Screwdriver.

  2. GeQVDPcffnBQmtZI

    • Lift the palm rest panel up.

    • Be sure to lift the panel slowly; there is a ribbon cable attached to the bottom.

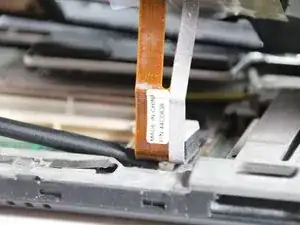

  3. 6vvuDGAMTjTyxPPG

    • Use the spudger to disconnect the ribbon cable.

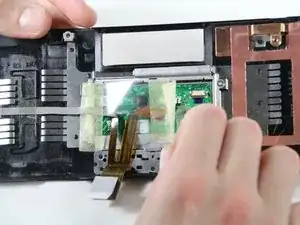

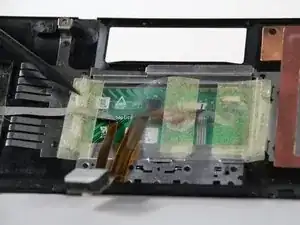

  4. 5E4nO3XIwKgIVFxT
    5E4nO3XIwKgIVFxT
    OrGjEU5V3y2W3Jex

    • Remove the tape, using the spudger if necessary.

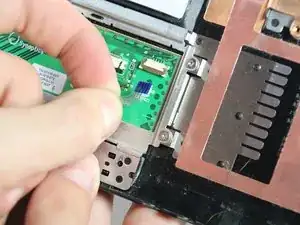

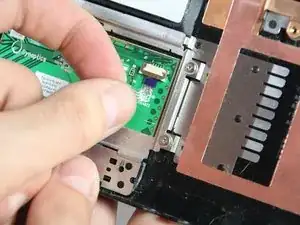

  5. YRxVIBUEVZYDpJPi
    YRxVIBUEVZYDpJPi
    RMDDbcqu5hya3vAJ

    • Disconnect the clear ribbon cable.

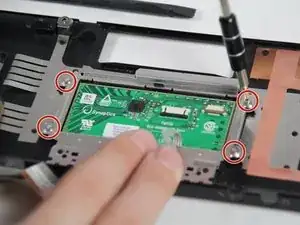

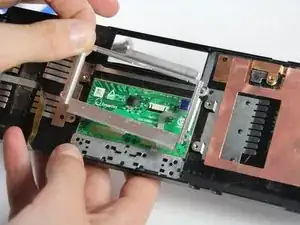

  6. EFOajVRSbYVc6sri
    EFOajVRSbYVc6sri
    GjVYdFplgXTst6R5

    • Use the Phillips #0 Screwdriver to remove the screws of the frame around the trackpad circuit board.

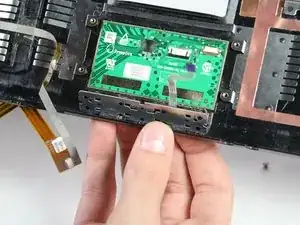

  7. 12u3GMplMSNE5Hhl
    12u3GMplMSNE5Hhl
    2mE4IwWornIMgnRa

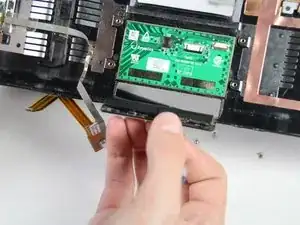

    • Remove the trackpad buttons.

Conclusion

To reassemble your device, follow these instructions in reverse order.
