Lenovo Thinkpad X201 Tablet LCD Replacement

Written By: Peter Gachuki
  • Comments: 1
Lenovo Thinkpad X201 Tablet LCD Replacement

Difficulty

Moderate

Steps

8

Time Required

25 - 30 minutes

Introduction

Use this guide to replace the screen of your Lenovo Thinkpad X201 Tablet.

  1. N2teuYHdBpRarXuy

    • First you push the lock button on the back of the computer from lock to unlock

  2. Bfd1pmnohYqUadbV

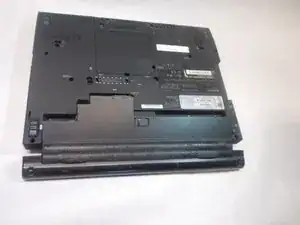

    • Then you hold it on unlocked and slide the battery pack out

  3. YNiUyXMUqjgpLrss
    YNiUyXMUqjgpLrss
    uRACxFaArSFjeyAI
    W5T1p6NfoXwqlRDk

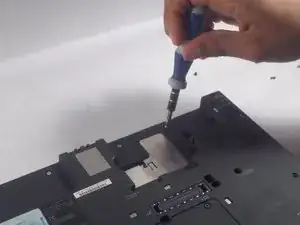

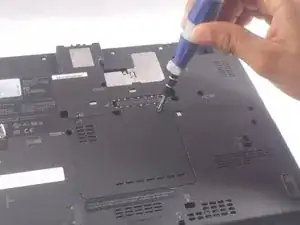

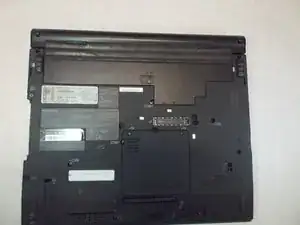

    • remove all screw covers above hinges

  4. JaFtDrKydPAPLEB2
    JaFtDrKydPAPLEB2
    JWix6yqPCwYFAhOV

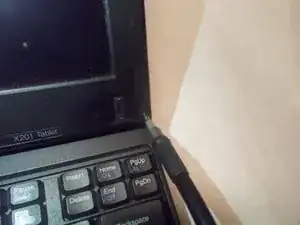

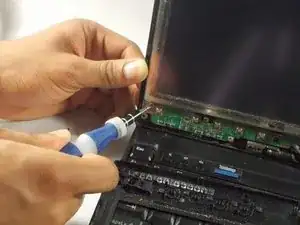

    • Unscrew the screws on the front of the LCD screen

  5. IxJrsaMvaMVGgt4g
    IxJrsaMvaMVGgt4g
    RKSKnhbliprRSoOC

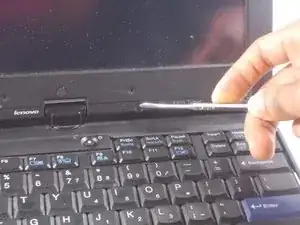

    • Remove additional two screws near bezel screws plus the single logic board screw in the center

  6. Lf2ZJaGXPJoSQIXo
    Lf2ZJaGXPJoSQIXo
    PnGQSy5RHI2xpQyY
    AaAJ6V2VH2bKRbZv

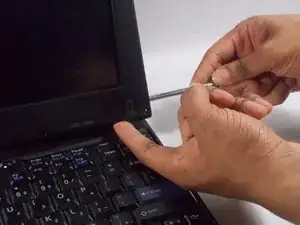

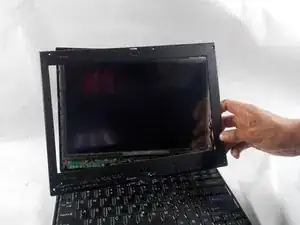

    • Gently pry the LCD cover with a flat head screwdriver, and pivot it over the signal cable near the LCD hinges. Pivot over all four corners

  7. DBZJGC22AO1k1BRs
    DBZJGC22AO1k1BRs
    lRXYpQx1PE6W4tmV

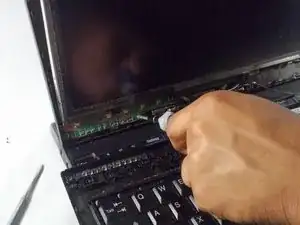

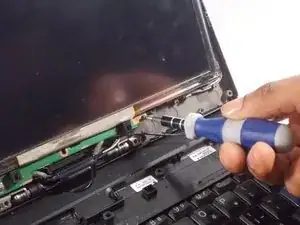

    • Continue to remove screens in front of the LCD cover, make sure all screws in the front are removed

  8. SbmT2MCePqfcC4yG

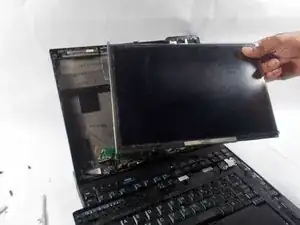

    • Once all screws are removed, remove the LCD Display but gently peeling back line a sticker

Conclusion

To reassemble your device, follow these instructions in reverse order.
