Introduction
I will replace the keyboard on this Thinkpad X220 in a few steps.
Tools
Parts
-


-

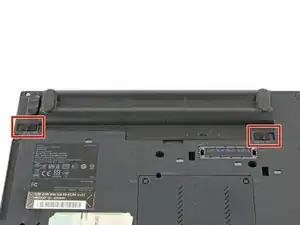

Locate the two switches that lock the battery.
 -

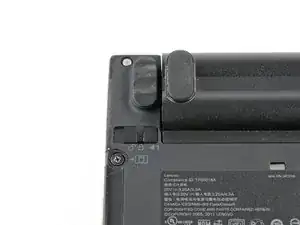

Then push the left switch outward into the "unlocked" position.

 -

 -


-

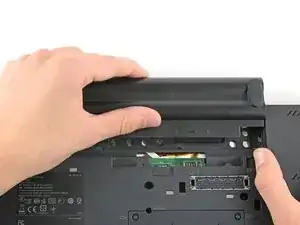

Now push and hold the right switch to the right while using the other hand to gently slide the battery upwards out of the laptop.

 -

 -


-

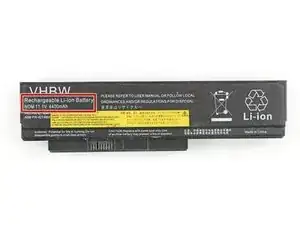

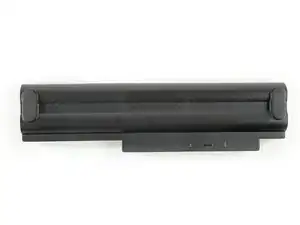

This is a rechargeable Li-Ion battery that has a capacity of 4400 mAh, if you have the 6 cell model.

 -

 -


-

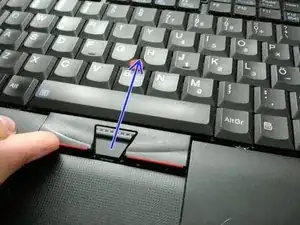

Put the laptop back on its feet, open the lid and push the keyboard from the TrackPoint click buttons.
 -

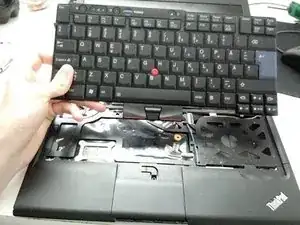

After that, pull it from the laptop assembly.

 -

 -


-

You should now have access to the keyboard's connector.
 -

Pull it gently from the grabbing tip.

 -

 -


-

The keyboard is now totally unplugged from the laptop.
 -

Here you go! Plug a new keyboard on the connector and follow the steps in the reverse order to finish your repair.

 -
