Introduction
Because the Lenovo Y410P uses a standard laptop hard drive, it is simple to replace. Hard Drives are often easily accessed, and this drive is no different. The hard drive can be replaced in just 2 simple steps.
-
-

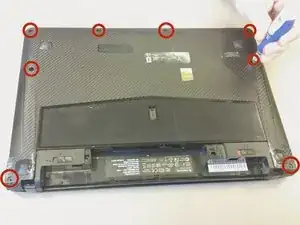

Remove the eight M2.5x8mm Phillips head screws that fasten the bottom cover.
-
For the Lenovo Y510P, there's another screw in the center that has to be removed.
-

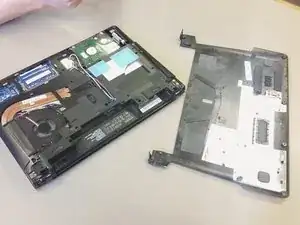

Lift bottom cover off and set aside.
-
On the Lenovo Y510P, use a black spudger around the outside edge to pop loose the bottom panel.
-
-
-

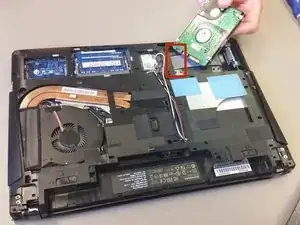

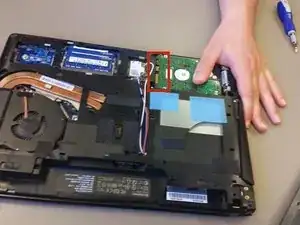

First remove the two screws at the end of the Hard Drive bracket then slide the Hard Drive/SSD out of its seat.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
