Lenovo Y50-70 Touch Heat Sink Replacement

Written By: Kevin Silken
  • Comments: 1
Lenovo Y50-70 Touch Heat Sink Replacement

Difficulty

Easy

Steps

4

Time Required

5 - 10 minutes

Introduction

The heat sink transfers excess thermal energy away from the CPU to the fan and cooling system in order to protect the CPU's delicate components.

  1. XTp1VtHXyf1c43XT
    XTp1VtHXyf1c43XT
    WwQegrnKKDSxYqQC

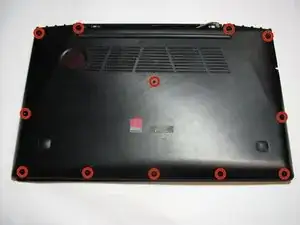

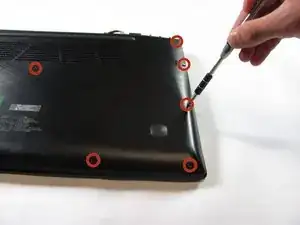

    • Remove all twelve 6 mm long screws on the back of the laptop with a Phillips #1 screwdriver.

    • Apply a lot of pressure to prevent the screws from stripping.

    • Make sure to turn off the computer first!

  2. 2maXJYYmsGDpQnhB
    2maXJYYmsGDpQnhB
    agnUDsJ5iKTYo1tY

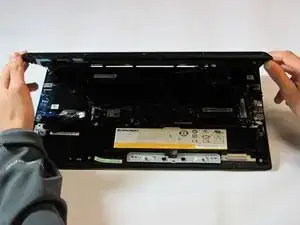

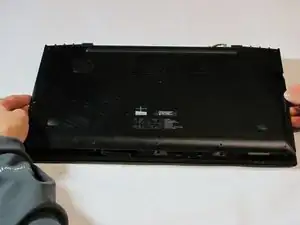

    • Pull off the back cover of the laptop. It should come off easily.

  3. 3vYiuyPxrBcvWvYC
    3vYiuyPxrBcvWvYC
    Rn3iUgTUKaVVZQUi

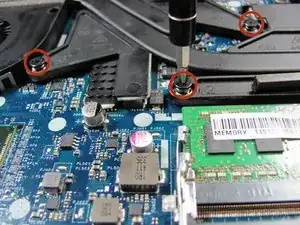

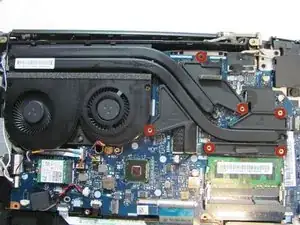

    • Remove all six 7mm screws from the heat sink using the Phillips #1 screwdriver.

  4. OMkEixR6SqDfvZyC
    OMkEixR6SqDfvZyC

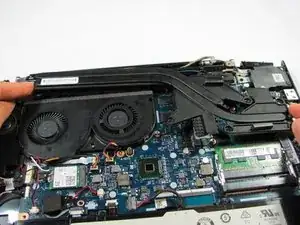

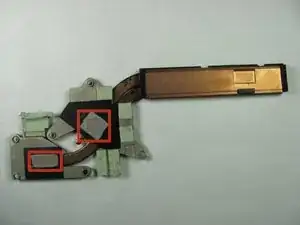

    P2Of2JYfcFU4CZpN
Conclusion

To reassemble your device, follow these instructions in reverse order.
