Lenovo Yoga 720-15IKB Speaker Replacement

Written By: dkay
  • Comments: 0
Lenovo Yoga 720-15IKB Speaker Replacement

Difficulty

Moderate

Steps

5

Time Required

10 - 15 minutes

Introduction

  1. IQ1GSfgIPwQhNFnq
    IQ1GSfgIPwQhNFnq
    OohoBOuSKNrKhBRs

    • Start by flipping the device over so that you see the screws.

    • Remove the 7 T5 short screws.

    • Remove the 3 long T5 screws.

  2. MugK425DZjiWYKfF
    MugK425DZjiWYKfF
    GP5ZarrEdOWxOlus

    • Starting at the left USB port use you opening tool to gently pry up the bottom case.

    • Make sure you are prying on the cover itself, not the metal shield around the USB port.

    • Pry along the laptop's edge as shown by the arrows.

    • Do NOT pry along the top side, or you will damage the casing. Stay with the arrows.

  3. hZHD3GErou3eFcPc

    • Lift the case from the bottom side. NOT the side with the hinges.

    • When you feel resistance, do NOT keep lifting or you will damage the housing.

    • Once you feel resistance, gently pull the case towards you. (away from the hinges.)

    • Remove the bottom case.

    • Unplug the battery connector

  5. YJDyaKZEInyQoxty
    YJDyaKZEInyQoxty
    PXRlXSlkTiidLKf6

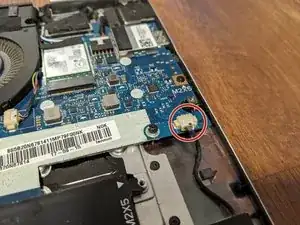

    • Unplug the speaker cable.

Conclusion

To reassemble your device, follow these instructions in reverse order.
