Logitech G400s Mouse Cable Replacement

Written By: Max Evans
  • Comments: 0
Logitech G400s Mouse Cable Replacement

Difficulty

Moderate

Steps

6

Time Required

8 - 20 minutes

Introduction

  1. B1SlrOLYRbYdcW2M

    • Use a Jimmy to remove the mouse feet.

    • Be careful to remove any film left by the mouse feet as well.

  2. njdSpU5htBEPqxTA

    • Remove the bottom mouse foot using a Jimmy and the same technique as in Step 1.

  3. LxnyarE3yiCR1RLW

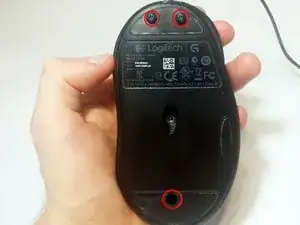

    • Use a Phillips #1 screwdriver to remove the three 5 mm Philips screws on the bottom surface.

  4. YRiEhoqUwQQeEBBm

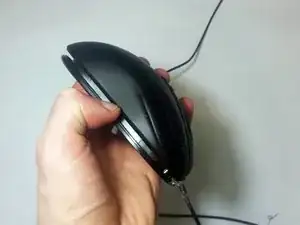

    • Gently pull the upper shell away from the bottom platform.

  5. UBUEDFBiTPFI2436

    • This is what the G400s will look like when the top shell is taken off.

  6. srMjZSJZsYGtkmED
    srMjZSJZsYGtkmED
    2KPuIHfMDWfoEX6X

    • Push the cable into its proper place inside the mouse shell.

Conclusion

To reassemble your device, follow these instructions in reverse order.
