Introduction
This guide will show you the process to disassemble the device and replace the motherboard.
Tools
-

                  -
            Open the latch that accesses the charging port
-
            Remove the black sticker and remove the screw with the indicated screwdriver
-

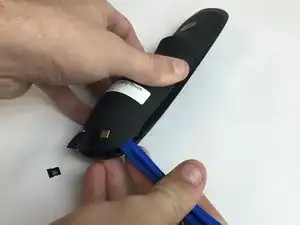

            Take the plastic opening tool and run it down the side of the remote to pop the case open
-

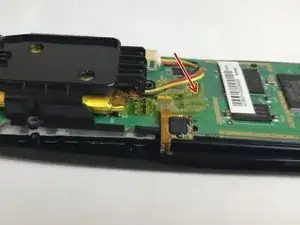

            Detach the white clamp to partially disconnect the case from the motherboard

-

-

                  -

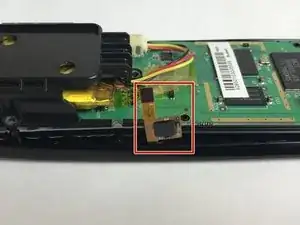

            Peel back thin yellow plastic film and detach the clip found underneath
-

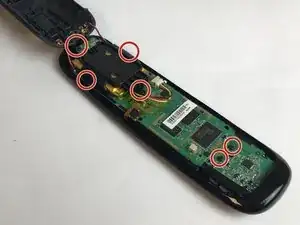

            Remove the screws that connect the motherboard to the case with the suggested screwdriver

-

-

                  -

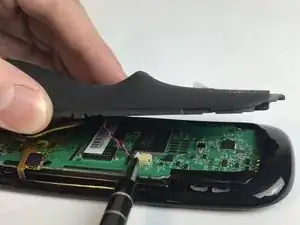

            Next, carefully remove the motherboard from the top piece of the case
-
            You should now be able to access all of the buttons and remove them from the case

-

To reassemble your device, follow these instructions in reverse order.
