MSI GE62 6QF Apache Pro RAM Replacement

Written By: Juan Erquiaga
  • Comments: 1
MSI GE62 6QF Apache Pro RAM Replacement

Difficulty

Moderate

Steps

7

Time Required

10 minutes

Introduction

Use this guide to remove the RAM out of your device.

  1. XKva4Guxtt2OwR1T

    • Use a Phillips screwdriver to remove the 5mm screw securing the optical drive to the bottom case.

  2. oCBRVJbISiqY46jY

    • Slide Optical Drive out of the computer.

  3. ACEtSC6OXqM2KKLL

    • Use a Phillips screwdriver to remove the fourteen 5mm screws on the back of the laptop.

    • One of these screws is hidden under a sticker.

  4. 5WVAaQAuqMIfT2CK
    5WVAaQAuqMIfT2CK
    WB1H1npJgCBmS6XW
    BLJmu5RTASW55HeR

    • Remove the three PH #0 2mm screws that were hidden underneath the optical drive.

    These 2mm screws require a PH #00 screwdriver (vs PH #0 as stated by author).

    DVL -

  5. pCORhCJ6YlykcGHe
    pCORhCJ6YlykcGHe
    ZQNWYtV1NI1BWcc3

    • Use an opening tool to run along the seam of the case where the upper and bottom case meet.

    • Pry the bottom case and remove from the upper part.

  6. mG3CkgrNGxrCoGkm
    mG3CkgrNGxrCoGkm
    cqlnockYR6FU3IPG
    Lj6PrJpFUthlnAAB

    • Remove the single PH #0 5mm screw holding the battery pack in place.

    • Remove the battery by sliding it away from the computer.

  7. yiyYETKCojPJNvXC
    yiyYETKCojPJNvXC

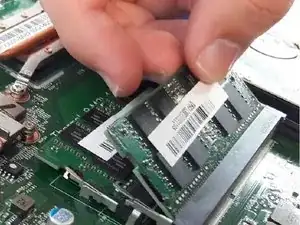

    FLfApKkN2MLiTH4m

    • Pull the metal tabs that hold the RAM in place away horizontally from the RAM stick, and slide the RAM out of the socket.

    • Repeat the same steps for the other RAM stick.

Conclusion

To reassemble your device, follow these instructions in reverse order.
