Mac mini Late 2018 Bottom Cover Replacement

Written By: Jeff Suovanen
  • Comments: 5
Mac mini Late 2018 Bottom Cover Replacement

Difficulty

Easy

Steps

2

Time Required

1 minute

Introduction

Use this guide to easily remove or replace the plastic bottom cover on your Mac mini.

  1. SHrmnfXIgsxWVDTp

    • Power off and unplug your Mac mini before you begin.

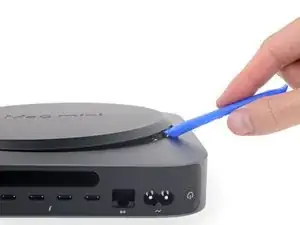

    • Use an opening tool to pry the bottom cover up off of the Mac mini.

    I got as far as this step to do one thing, blow out all the dust. It was far enough and a lot of dust came out. I used a XPower A-2S to blow out the dust.

    nirv -

  2. dlNOPXvOAxdvQXCZ
    dlNOPXvOAxdvQXCZ
    PRmtrMMsCQyELFKC

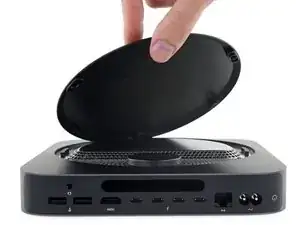

    • Lift and remove the bottom cover.

    • To reinstall the cover:

    • Align it carefully so that the words "Mac mini" can be read when the ports are facing you.

    • Then, press down on the cover to snap its three hidden clips into place.

    My antenna plate seems to have TR7 Torx security screws

    DougPA -

    My Screws were also TR7, 2020 build

    Eric Ford -

Conclusion

To reassemble your device, follow these instructions in reverse order.
