Introduction
(Disclaimer: Remove batteries before proceeding)
Tools
-
-
Flip the guitar over so it is back side up. The battery compartment should be facing up.
-

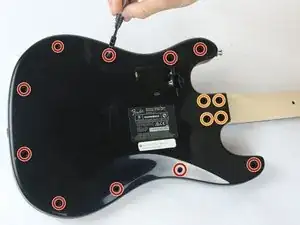

Use a size J1 head screwdriver to remove the ten 5 mm short screws.
-
Use a J1 screwdriver to remove the four 5 mm long screws on the back of the device.
-
-
-
Turn the device over so the front of the guitar is facing you.
-

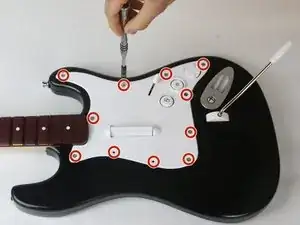

Using a size J1 philips head screwdriver, remove the eleven 5 mm silver screws (circled in red) around the white panel.
-
-
-
Gently lift the white panel and twist 90 degrees clockwise.
-

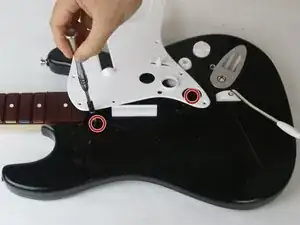

Using a size J1 head screwdriver, remove the two 5 mm black screws from underneath the white panel. You should now be able to pull the guitar apart.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
