Mainstays White 12 Cup Drip Coffee Maker 28035441 Disassembly

Written By: Nathan lee
  • Comments: 0
Mainstays White 12 Cup Drip Coffee Maker 28035441 Disassembly

Difficulty

Moderate

Steps

7

Time Required

35 - 45 minutes

Introduction

This guide shows how to access the interior of your Mainstays White 12 Cup Drip Coffee Maker.

  1. 5ukQ3yOMwpmGhtUt

    • Inspect the bottom of the coffee maker and find the small hole near the middle of the lid. There should be a screw inside this hole.

  2. tmriBBOfjqtgWtcg
    tmriBBOfjqtgWtcg
    31BPsiYG6LSfsKaW

    • Use a Phillips screwdriver remove that screw 13 mm screw on the bottom of the coffeemaker.

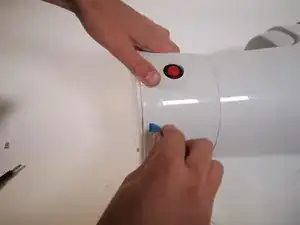

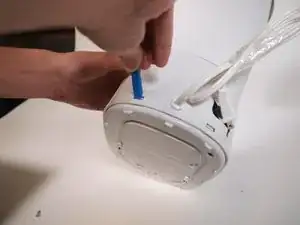

  3. iTDqQCDNZPGCZVfl
    iTDqQCDNZPGCZVfl
    UUrf2xEOtrimWIS1

    • Once that screw is off, locate the 2 push latches on the back and bottom side of the coffee maker.

    • Use a pry tool to initially dislodge the previously mentioned latches.

    • Given the age of your coffeemaker, this dislodging process will likely bring you little success. Just try to loosen up the latch for the following step.

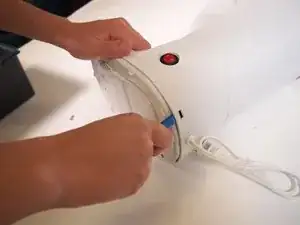

  4. CMi2GN1X2rrQupir
    CMi2GN1X2rrQupir
    OLZYOUSgtk2WeLYn
    kmMPGLnwQl55wLMi

    • Use a prying tool to pry the bottom of the coffee maker off, pushing the sharper end into the crevice and using the tool like a lever to lift the lid off.

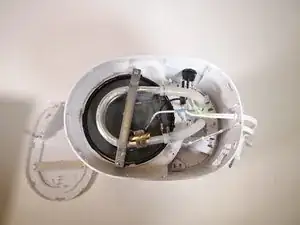

  5. LRnZIVsbYYqPFaB6

    • Once you have dislodged both latches, simply pull the lid up and away from the front of the coffeemaker and the lid should be completely off.

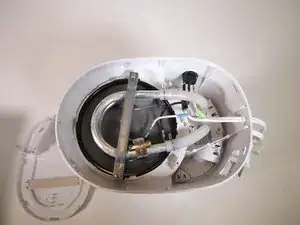

  6. DMISjEjDU2tfNZyL

    • Once the bottom is off, you should be able to access any part of the coffee maker's wiring and circuits.

    • If additional disassembly is required, use a screwdriver to remove the two screws connected to the metal brace, and the entire heating apparatus will come off.

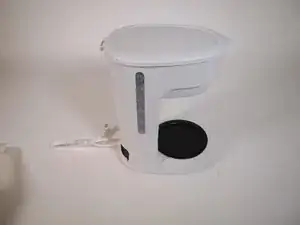

  7. vcdXvZPSk3R3SmSQ
    vcdXvZPSk3R3SmSQ
    sCpg6TdYiKGv1BBY
    KE4IMsKMKTNYanTu

    • With the coffee maker circuit visible, we can see how the machine operates at a basic level:

    • The coffee maker is controlled by a simple on/off switch on the side of the machine. When the device is plugged into the wall, it receives consistent AC power that flows into the switch. However the circuit is broken so it does not begin heating until the switch is turned on.

    • Once the switch is turned on, current can flow through the white wire (blue tape) into two thermal fuses (216°C) which act as safeguards against overheating. From there, power flows through the heating system which contains about 17 ohms of resistance, and travels back out into the switch by the black wire

Conclusion

To reassemble your device, follow these instructions in reverse order.
