Makita GA4030K Switch Replacement

Written By: Nyssa Backes
  • Comments: 0
Makita GA4030K Switch Replacement

Difficulty

Moderate

Steps

9

Time Required

15 - 20 minutes

Introduction

This guide outlines the replacement of the internal electrical switch.

  1. ITFLolsgjunuX5VD
    ITFLolsgjunuX5VD
    wJmQSmULKY3UDUN4

    • Unscrew the 20 mm tapping screw using a Philips #02 screwdriver.

  2. FTBa4amAXWI2Hp4w

    • Slide the back cover down the power cable.

  3. bHJURP2gyAaTKPB5
    bHJURP2gyAaTKPB5
    aasWgPQNGCvStWDQ
    KYaymPq4F2LOmkYg

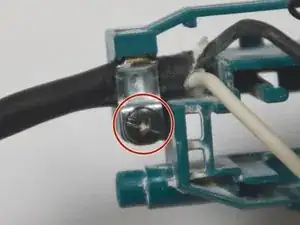

    • Unscrew the 20 mm tapping screw using a Phillips #02 screwdriver.

    • Lift the clasp up and out to remove.

  4. LTcPqAiAygXYjOUQ
    LTcPqAiAygXYjOUQ
    ug6cpLWrpCNlIXeE
    CswxWudERIj4UibF

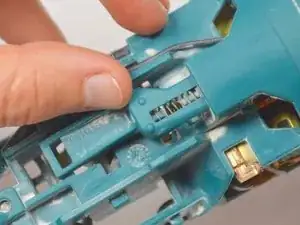

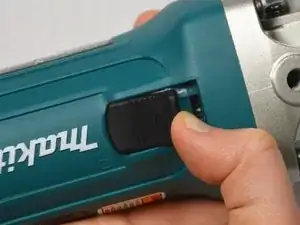

    • Place your finger in the gap in front of the switch. Now, at the base of the device, push the switch lever into the 'on' position.

  5. fhbnL1WeJcbDn5uQ

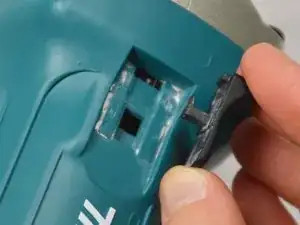

    • Keeping the switch lever in the 'on' position, remove the switch.

    • When reinserting the switch, place the switch in the hole without pressing the switch lever in. Holding the switch against the back edge of the hole, push the switch lever fully into the 'on' position and then let go. The switch should catch onto the switch lever and remain attached.

  6. TYy6MFcYtSCFjpTD
    TYy6MFcYtSCFjpTD
    6uLCYDVxJJ46LVdK
    bOhH2KTIBSxDlMP6

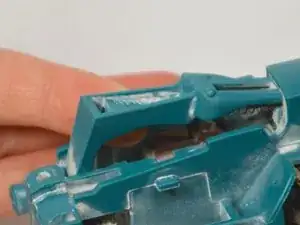

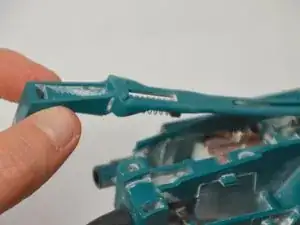

    • Pull the switch lever up and out of the body of the angle grinder.

  7. dda4j1FL5ebXDkXF
    dda4j1FL5ebXDkXF
    hTyPap6ne11WS45B
    4XcgVdHBEafqnFSi

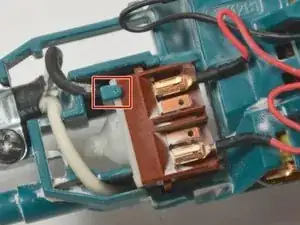

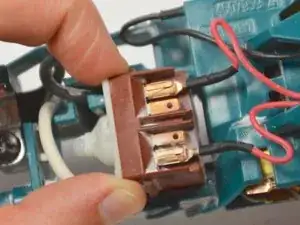

    • Pull back the plastic clip and pull the internal switch up and out of the cavity.

  8. 5ggcePPbrBSNOcXj
    5ggcePPbrBSNOcXj
    dxZyH4NrxXo6TBhh
    JqwHqJeLjGYVbw5p

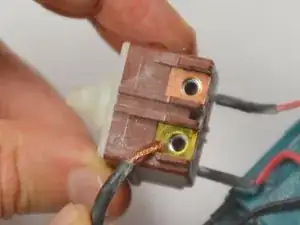

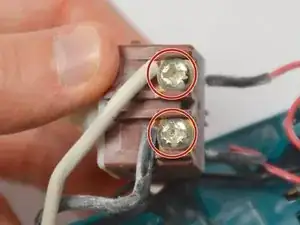

    • Remove the two 10 mm screws holding the power cord leads in place using a Phillips #02 screwdriver.

    • When reassembling, be sure to attach the power cabling in the same positions.

  9. AagpqmoZgI4uSHUj
    AagpqmoZgI4uSHUj
    SBh6g6TTcVqhDu1F
    DkBp5jNEj3LexhAq

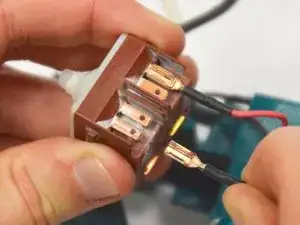

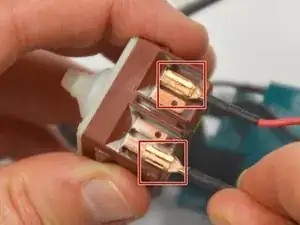

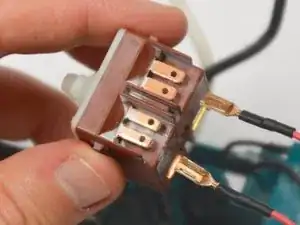

    • Pull the two leads leading to the motor off of the switch.

    • When inserting the leads of the new switch make sure that they are inserted into the two outside spaces on the internal switch mechanism.

Conclusion

To reassemble your device, follow these instructions in reverse order.
