Introduction
A quick and simple guide to replacing the battery in your Marshall MID ANC headphones. Might apply to other models, too.

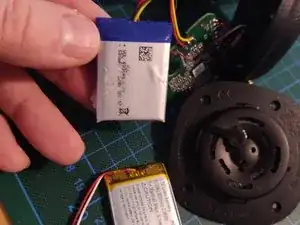

The replacement battery needs a NTC cable + temperature regulation PCB.
I found this one on Amazon Germany working flawlessly (charging and functioning well since 12/2023):
DC 3.7V 800mAh 603040 Wiederaufladbare Li-Ionen Batterie für Marshall MID Major II Major III Major IV Bluetooth Kopfhörer VDL603040 SR603040
Tools
Parts
-
-

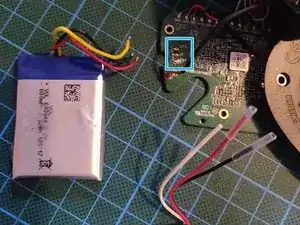

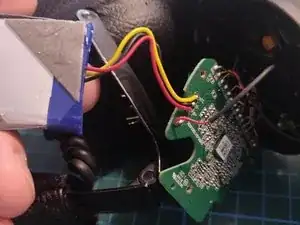

Unsolder the 3 battery leads.
-

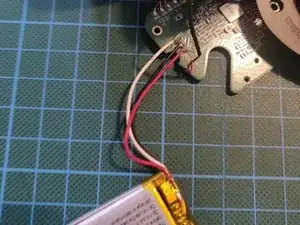

Solder the 3 leads from the new battery (red=B+, black=B-, white=NTC).
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
