Martian Victory Motherboard Replacement

Written By: Dominic Coffey
  • Comments: 1
Martian Victory Motherboard Replacement

Difficulty

Moderate

Steps

9

Time Required

8 - 15 minutes

Introduction

How to access and remove the motherboard of the Martian Smartwatch

  1. Vp1sWwZOwaKqpp1S
    Vp1sWwZOwaKqpp1S
    ZBq4tgOxIoK4pspP

    • Unscrew the four 3.4 mm flat head screws

    where to buy this battery?

    Roy Caño -

  2. GeiDlUXUPOWRGoEW

    • Carefully lift the back plate off the watch. You will notice a lithium battery and rubber gasket attached to the back plate.

  3. RXdVshdmEoJi24kr

    • If not replacing lithium battery, skip down two steps.

    • Using the plastic removal tool, pry the battery from the backing plate. The battery is simply attached with glue.

  4. TCbCG2t5ruhIQEEp

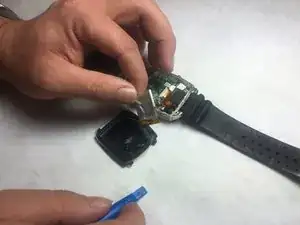

    • Desolder the battery connections from the motherboard. Learn how to solder components here!

  5. nF6CgAbksSBAnWaw

    • Use PH00 screw driver to remove two 2.4mm Phillips head screws.

  6. lHqQTqiP6hBBqegS

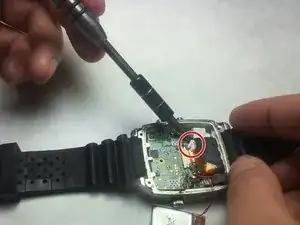

    • Use a spudger or tweezers to remove a white sticker that covers a Phillips head screw.

  7. KVBGpMkpjM12TMUt

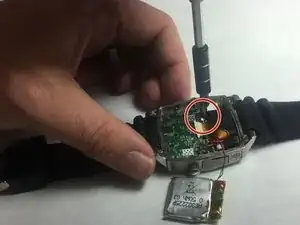

    • Use PH00 screwdriver to remove 5.2mm Phillips head screw

  8. TlR6eScwadjTk5rA
    TlR6eScwadjTk5rA
    FXWasZFcbCQWOqht
    RTYRCZX5Lh2QArJK

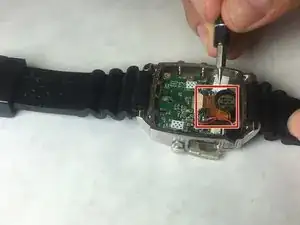

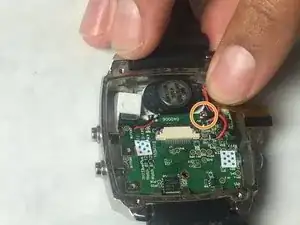

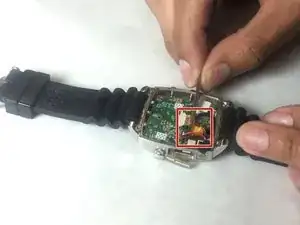

    • Use ESD safe tweezers to remove the gold ribbon cable.

    • This will expose a second 5.2mm Phillips head screw that can be removed with a PH00 screwdriver.

  9. Vvt4v6wicLbmwJnP
    Vvt4v6wicLbmwJnP
    X3RglRqL4TAYF1Ie

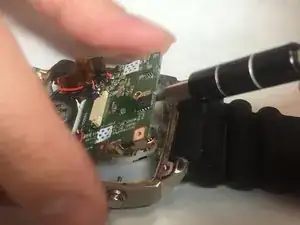

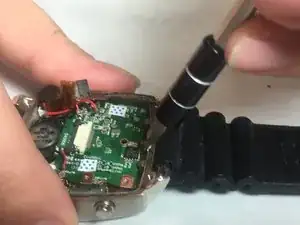

    • Use a spudger to gently pry on the motherboard towards the top of the watch, being towards the 12 o'clock position to loosen the motherboard.

    • You can now access the parts and pieces on the bottom of, and below the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
