Matsunichi MarquisPad MP977 Plastic Front Panel Replacement

Written By: Rachel Servis
  • Comments: 1
Matsunichi MarquisPad MP977 Plastic Front Panel Replacement

Difficulty

Difficult

Steps

6

Time Required

30 minutes

Introduction

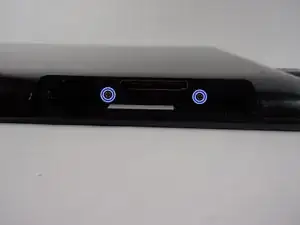

  1. TSIGC5RxUGXQmeTj

    • Remove the two screws using a PH #00 Phillips head screw driver.

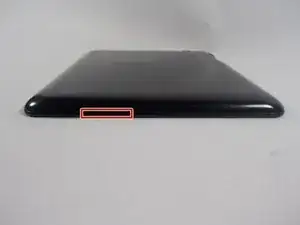

  2. NoDB2jWX31SoNP5w
    NoDB2jWX31SoNP5w
    OeskGcbNoYBU5TmM
    O3PJeXksnuZq5qTA

    • Place the device face down on a flat surface.

    • Insert one of the wide tipped, plastic opening tools into the top of the left speaker slot.

    • Be sure not to puncture the covering of the speaker.

    • Pry the back plate open and slide the tool in a clockwise direction, moving it along the opening between the device and its back plate until you reach the power button.

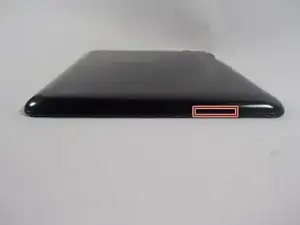

  3. sJclGEvVTnwyCSVF
    sJclGEvVTnwyCSVF
    PJsNgrxIyF5dsHLH

    • Insert opening tool into the right speaker slot.

    • Pry open the back plate, and slide the tool counter clockwise along the device until you reach the charging port.

  4. EFsW5CXikJHJdfwx

    • Remove the back plate and place it to the side.

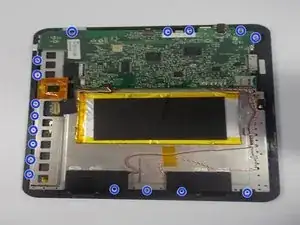

  5. cMUAWaZGfENNxasJ

    • Remove the screws holding the metal frame plate in place.

    • Remove the metal frame plate from the plastic housing.

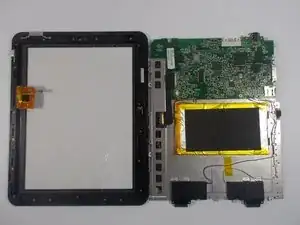

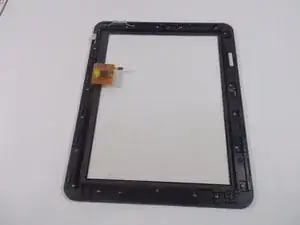

  6. ZVpUZUU2WWVAHfD4
    ZVpUZUU2WWVAHfD4
    tAepjgnPbE1EOskF

    • Place the metal frame plate and components into the new plastic front panel.

Conclusion

To reassemble your device, follow these instructions in reverse order.
