Memorex 2Xtreme MP3830-01 CD Cover Latch Replacement

Written By: Meghan
  • Comments: 3
Memorex 2Xtreme MP3830-01 CD Cover Latch Replacement

Difficulty

Moderate

Steps

3

Time Required

No estimate

Introduction

The latch is a simple part to replace and must be working in order to use the CD player.

  1. ruNvAnqVBACSLn4b

    • Open the CD cover so that the latch can be accessed.

  2. snGRTanVkIp4XbEq

    • Using a 3/16" flat head screwdriver, gently pry in the corner of the latch and the boombox housing.

    • You should see the latch pop out of the housing a little bit.

    • Then move to the opposite side of the latch and gently pry there.

    • Keep moving back and forth until the latch comes loose and can be removed with your fingers.

  3. CiDvQqE4vZUgNHsX

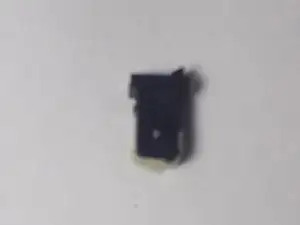

    • When the latch is removed, it should like the part in the picture.

Conclusion

To reassemble your device, follow these instructions in reverse order.
