Introduction
Here is a step-by-step guide on how to disassemble and troubleshoot a faulty Mercedes w114/115 clock.
Tools
-

                  -

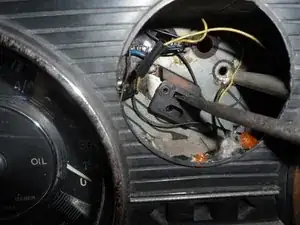

            Locate the area that houses the clock. Unscrew the two barrels and place it aside.
-

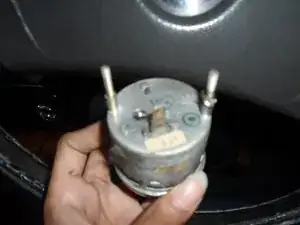

            Carefully pull out the clock without damaging any other parts.

-

-

                  -

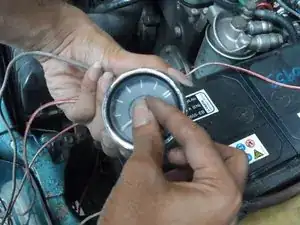

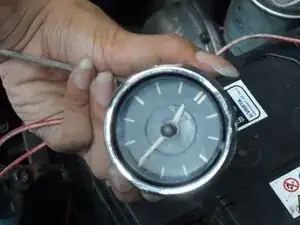

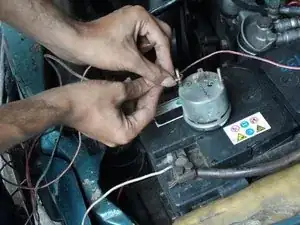

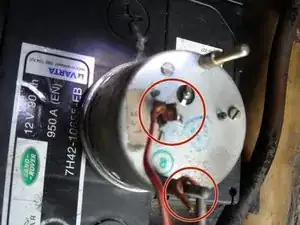

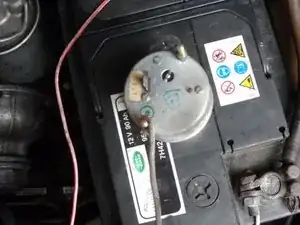

            Connect the screw (located behind the clock) to the negative supply of the battery, and then the small pin to the positive supply.

-

-

                  -

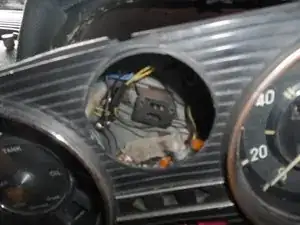

            To check the power supply of the clock, locate the electrical connector and find the pin on it which supplies the power (12v) to the clock.
-

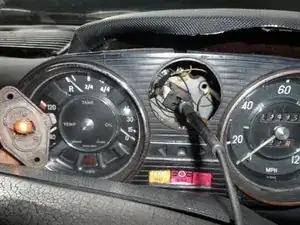

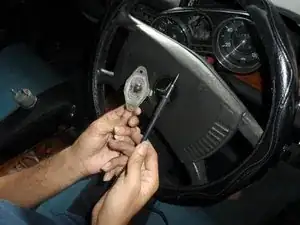

            Take a small bulb and socket and bridge a wire from the 12v pin supplied from the electrical connector, to one of the two wires on the bulb and socket.
-

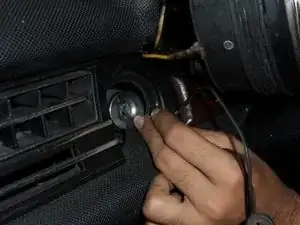

            Next find a ground supply nearby ( the best place would be the key hole) and bridge another wire from it to the second available wire on the bulb and socket.
-
            If the bulb lights up, it means your clock has power.

-

To reassemble your device, follow these instructions in reverse order.
