Microsoft Surface Laptop 7 (13.8-inch) Chip ID

Written By: Chayton Ritter
Published: 22/06/24
  • Comments: 0

Microsoft Surface Laptop 7 (13.8-inch) Chip ID

Published: 22/06/24

Teardown

Introduction

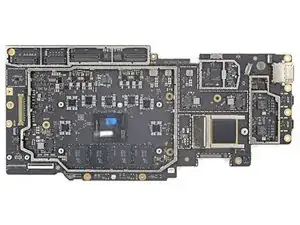

  1. umpUpZpVIcNK4agl
    umpUpZpVIcNK4agl
    YRkfeeBBnFFPOJan

    • Qualcomm X1P-64-100-103 Snapdragon X Plus deca-core applications processor

    • Micron MT62F1G32D2DS-023 WT:C 4 GB LPDDR5X SDRAM memory

    • Qualcomm PMC8380-001-00 power management

    • Qualcomm PMC8380VE-001 power management

    • Qualcomm PMC1010H-001-02 charge pump & buck regulator

    • Qualcomm PMC1010H-001-06 charge pump & buck regulator

    • Qualcomm power management

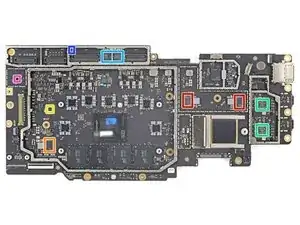

  2. NiSHqtMsrmjKl6SP

    • Qualcomm SMB2360-002 battery charger

    • Qualcomm SMB2361-002 battery charger

    • Likely Qualcomm clock generator

    • Parade Technologies PS8830 USB4, DisplayPort 2.0, and Thunderbolt 3.0 retimer

    • Probably camera processor

    • Macronix MX25U1633FZUI 2 MB serial NOR flash memory

    • Likely Qualcomm camera power management

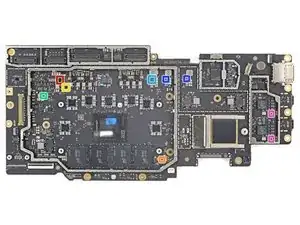

  3. CGPGDWHlbwFluoiQ

    • Murata PE23108 LED backlight driver

    • Texas Instruments TPS61163A 2-ch. white LED driver

    • Analog Devices MAX34417 current & voltage monitor

    • Monolithic Power Systems MP2322 1 A synchronous step-down converter

    • Monolithic Power Systems DC-DC converter

    • Monolithic Power Systems DC-DC converter

    • NXP Semiconductors NX20P0407UK USB type-C port protector

  4. RnHgo2P5v6DTXCk1

    • Nexperia 74LVC2G66 dual SPST analog switch

    • Monolithic Power Systems MP5077GG programmable load switch

    • Texas Instruments TPS22964C 3 A load switch

    • Diodes Incorporated AP22653AFDZ-7 adjustable current-limited power distribution switch

    • Diodes Incorporated AP22800HB-7 programmable load switch

    • Richtek LDO regulator

    • Texas Instruments PCA9306 2-bit voltage level translator

  5. cqQZej4cljQAbrOR

    • Texas Instruments SN74LV1T08 single 2-input AND gate

    • Texas Instruments SN74LV1T32 single 2-input OR gate

    • Texas Instruments SN74AUP1G08 single 2-input AND gate

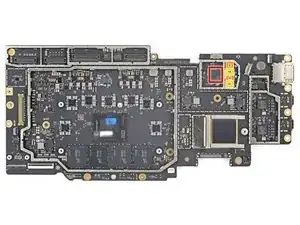

  6. vWjoDsDbCrfK6aDU

    • Qualcomm WCN7851-501 FastConnect 7800 WiFi 7 & Bluetooth 5.4 controller

    • Qualcomm 2.4 GHz front-end module

    • Qualcomm 5 GHz front-end module

  7. dEKRtNUplMW3CVnC

    • Qualcomm B7530 Bluetooth/WLAN SAW filter

  8. tXv4nWNBsBc6FowR
    tXv4nWNBsBc6FowR
    GaIYBUKp6PEQYqOS

    • NXP Semiconductors MIMXRT633SFFOB 32-bit ARM Cortex-M33 microcontroller w/ Xtensa HiFi4 audio DSP

    • Macronix MX25U51293GZ4I40 64 MB serial NOR flash memory

    • Macronix MX25U1633FZUI 2 MB serial NOR flash memory

    • Qualcomm WCD9385-000 audio codec

    • Qualcomm audio amplifier

    • Renesas mixed signal array

    • Monolithic Power Systems MP28167GQ-A 3 A buck-boost converter

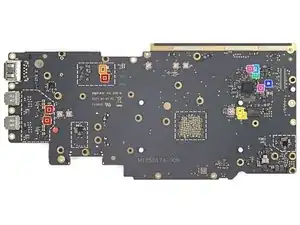

  9. wsJ1UKi6PgrZoxog

    • Richtek RT5753ALGQW 3 A synchronous step-down converter

    • Richtek RT5788AGJ8F 4 A synchronous step-down converter

    • Analog Devices MAX4983EEVB+ USB 2.0 DPDT analog switch

    • Vishay DG2723 dual SPDT analog switch

    • Nexperia 74LVC2G66 dual SPST analog switch

    • onsemi FPF2495CUCX 28 V over-voltage & over-current protection load switch

    • onsemi FPF1504 load management switch

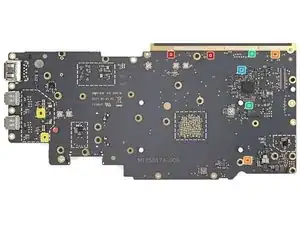

  10. VR5UBqvn2QTBYQGe

    • Texas Instruments TPS22964C 3 A load switch

    • Diodes Incorporated AP22653AFDZ-7 adjustable current-limited power distribution switch

    • Diodes Incorporated AP22800HB-7 programmable load switch

    • Richtek LDO regulator

    • Nexperia 74AVC2T245 2-bit level shifter
