Introduction
This guide shows the owner of the device how to take and replace the locking mechanism for the scanner.
Tools
-
-
Loosen the screws on the serial port by turning them counter clockwise by hand.
-
After loosening the screws, pull the serial port out.
-
-
-
After placing one plastic opening tool into the slit, slide other plastic opening tools along the slit to detach the top from the bottom of the chassis.
-
Go all the way along the chassis until you can lift the upper lid.
-
-
-
Do this by grabbing the upper lid from the sides and rotating it ninety degrees so it is perpendicular to the bottom lid.
-
Grab the ribbon cable and gently pull it out of its slot with your fingers.
-
The upper lid can now safely be removed from the bottom lid.
-
-
-

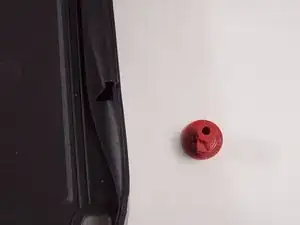

Locate the locking mechanism in the front left hand corner of the device.
-
Gently push on it until it becomes loose.
-
Rotate and jiggle it until it comes out the bottom of the scanner.
-
Find a replacement locking mechanism and insert it into the scanner.
-
To reassemble your device, follow these instructions in reverse order.
