Introduction
This guide gives step-by-step instructions on repairing the speaker for a Motorola C290 cell phone.
-
-
Flip open your Motorola C290.
-
Remove rubber stoppers located around main screen using a push pin.
-
Use a Torx T6 Screwdriver to unscrew the four screws.
-
-
-
Use a plastic opening tool to pry open a gap between the top cover and the face of the phone.
-
Slide the plastic opening tool along gap and pry open case.
-
Remove top cover.
-
-
-
Insert the plastic opening tool between the metal screen components and the plastic frame at the corners.
-
Firmly pry the screen components from the frame with a twisting motion
-
Completely remove screen components from frame.
-
-
-

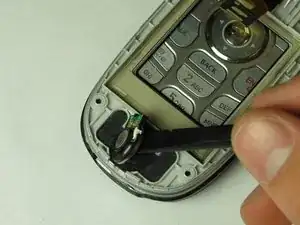

Insert spudger underneath the speaker.
-
Gently break the sticky seal between the phone case and speaker.
-

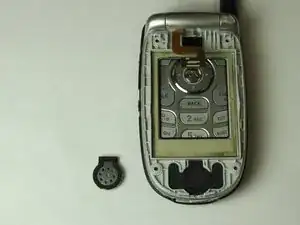

Lift the speaker off the phone case.
-
To reassemble your device, follow these instructions in reverse order.
