Motorola Droid Pro Screen Replacement

Written By: Kyle Shays
  • Comments: 0
Motorola Droid Pro Screen Replacement

Difficulty

Moderate

Steps

14

Time Required

20 minutes

Introduction

Before you begin, make sure you power down your device and work in a clean area. Also, wear a static band to prevent damage to your device.

  1. jjZk36VvEuLuQsaL

    • Remove the back cover using the thumb tab located on the bottom of the phone.

  2. oNCJjTkHNMIvMdEC
    oNCJjTkHNMIvMdEC
    L5odJeNFannATFdO

    • Remove the battery using the thumb tab.

  3. tKRs3wDitb5gs4EV
    tKRs3wDitb5gs4EV
    Nq34AeJWpIHOJjP2

    • Using a T4 Torx driver, remove the eight 4 mm back panel screws.

  4. GbDgpdXcaaTdbKME
    GbDgpdXcaaTdbKME
    XsVPexLrXDJCImWR
    SNfnJQGVZuYDctRG

    • Use a plastic opening tool to open the phone along the sides between the front panel and the chrome trim.

    • It is held together by small clips that lock in. You may have to use extra force to unlock them.

    • Go around on all sides of the phone, unlocking the clips. Then pull the back panel off.

  5. oAVSRQQlyFYXVFOr
    oAVSRQQlyFYXVFOr
    SgUAK1TLmeVBlLga

    • Gently lift the SD & SIM card board (PCB) as shown.

    • There is a ribbon cable attached underneath. Gently pull the PCB board away from the phone and it will detach easily.

  6. LgahaZ2DOHRDSLME
    LgahaZ2DOHRDSLME
    KESQ64W1WcvArWEp

    • Use your plastic opening tool to disconnect the motherboard/keyboard ribbon cable.

    • There are small tabs on the side of the connectors to wedge your tool under.

  7. kaUaVKITZe4BerSK
    kaUaVKITZe4BerSK
    bXjWvDoLk61WVITA

    • Use your plastic opening tool to disconnect the two ribbon cables at the top of the phone.

  8. CIBwA4Sygr3aKUH1
    CIBwA4Sygr3aKUH1
    psSBjQEPjOdLqYWS

    • Disconnect the 2nd keyboard connector from the motherboard and remove it from its side holders.

    • This cable is fragile so be careful when disconnecting and moving it around.

  9. Is2IEEXpOCYAAA6y

    • Use a T5 Torx Screwdriver to unscrew the 2mm screw.

  10. aOQiaW3VD4poeYCx
    aOQiaW3VD4poeYCx
    GRNJ1FPtXEclTPfv
    VFK1pCsYNWkPcl6J

    • Remove the camera's rubber seal by pulling it off. It is not connected to anything.

  11. BCSwNPSsyo6Stqji
    BCSwNPSsyo6Stqji
    rGUbAULBbVbQWCBh

    • To remove the motherboard, pull it to the side. The camera that is connected to the motherboard does not pull straight up and out from its holder.

  12. pTBktydAAEFY1JED
    pTBktydAAEFY1JED
    AeESJU3IaGwHUD5Q

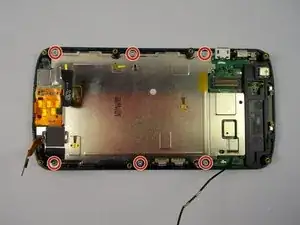

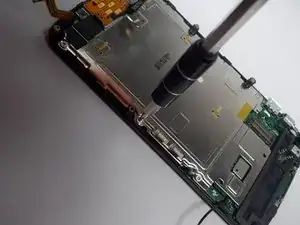

    • Use a T4 Torx Screwdriver to remove the (6) 1mm screws.

  13. iEx4FByCwq3VKUhN
    iEx4FByCwq3VKUhN
    vdg3BGHgM2OhrEK2
    3DdssC521UxLnGSp

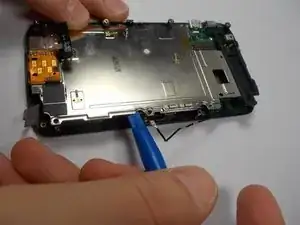

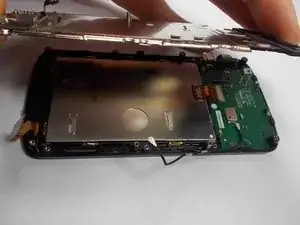

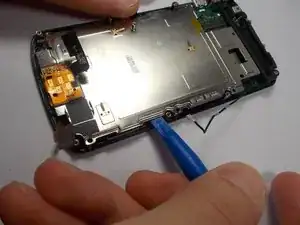

    • Using a plastic opening tool or spudger lift the rear screen plate up and pull it off.

  14. MK2utUxZgJmsUaxY
    MK2utUxZgJmsUaxY
    IbRlcGn1GAtAFebc
    sc6XoD5daColeHKl

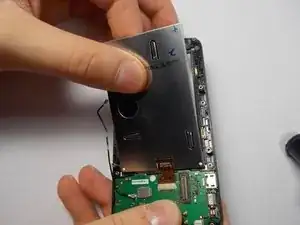

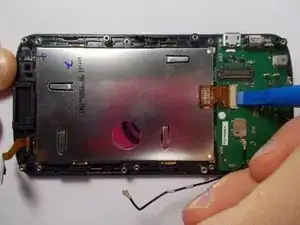

    • Unlock the screen's ribbon cable.

    • The mechanism that locks the ribbon cable in place for the screen is very weak, so be careful.

    • To remove the screen, you have to flip the phone over and let it fall out slowly into your hand. Be careful not to put any tension on the ribbon cable.

    • Then pull the screen away from the ribbon cable connector and it will slide out easily. Do not use excessive force.

Conclusion

To reassemble your device, follow these instructions in reverse order.
