Introduction
If you are unable to use your headphones properly, the headphone jack may be faulty and needs to be replaced. Use this guide to replace your headphone jack.
-
-
Insert a plastic opening tool into the indentation at the bottom of the phone between the front and rear covers.
-
Lift the back cover from the bottom and remove it from the phone.
-
-
-
Insert a plastic opening tool, or your finger, into the notch in between the sim card and the battery and lift the battery upward.
-
Remove the battery from your phone.
-
-
-
Remove the 10 T4 Torx screws securing the midframe to the display assembly.
-

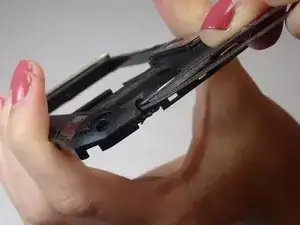

Gently pry the midframe from the display assembly and remove it.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
