Introduction
Has your keypad stopped responding due to debris build-up? This guide will show you how to remove the keypad.
Tools
-
-

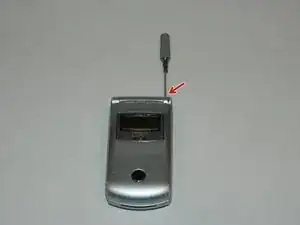

At the base of the antenna, use your fingers to unscrew the stem counterclockwise.
-
The antenna will pull out with little effort.
-
-
-

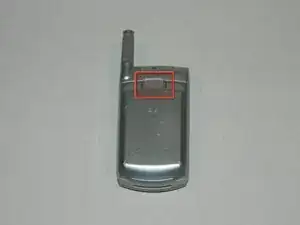

On the back of the phone, locate the tab with the down arrow.
-
Using your finger, press the tab and slide the back cover down to release it from the phone.
-
-
-

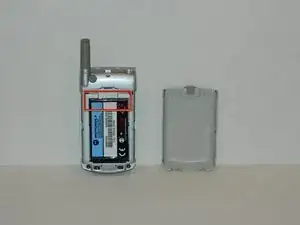

Inserting your finger in the recess at the top edge of the battery, pull the battery away from the housing to remove it.
-
-
-

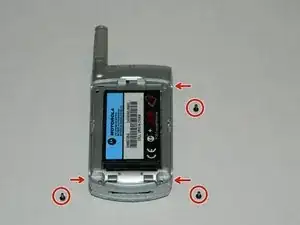

Locate the three screws that secure the back battery housing to the phone.
-
Use a Torx T6 screwdriver to unscrew the screws and then remove them with your fingers.
-
-
-
Using a spudger (not shown), separate by gently prying the front from the back of the phone housing.
-
Remove the back.
-
-
-

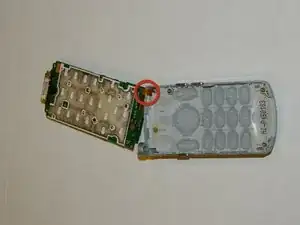

In the same direction you would flip open the phone, use your finger to gently lift the circuit board from the plastic keypad.
-
-
-

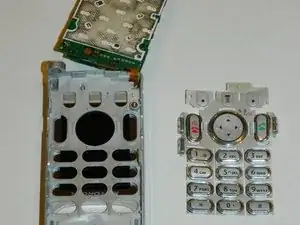

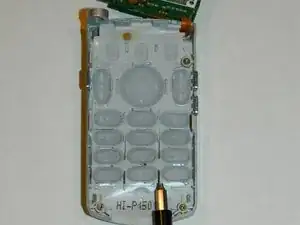

While avoiding contact with the inner electronics, use the spudger to lift the plastic keypad from the phone.
-
-
-

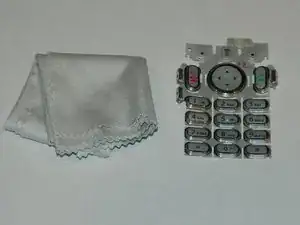

Using a lens cloth, wipe away any build-up on or between the keys.
-
Wait for the keypad to dry before reassembling.
-
To reassemble your device, follow these instructions in reverse order.
