Motorola V60c Motherboard Replacement

Written By: Ryan Kuroiwa
  • Comments: 1
Motorola V60c Motherboard Replacement

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

How to replace the motherboard of your Motorola V60c phone.

  1. SCGYqgMxGYZ6wQbJ
    SCGYqgMxGYZ6wQbJ
    imPKO2NDYNFJRWLw

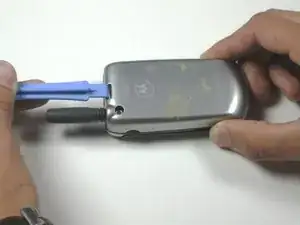

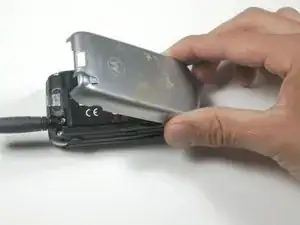

    • Depress the silver button.

    • Pull from top of phone to lift the cover.

    A spudger may be helpful

    Nick -

  2. TRwtCDgwjFUyjIFe
    TRwtCDgwjFUyjIFe
    2UDeDfDlA1yFqbsE

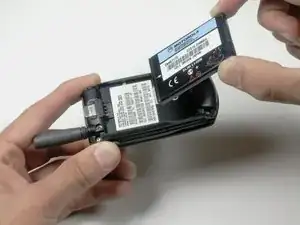

    • Hold battery from both sides at the bottom.

    • Push upwards and gently lift to remove.

  3. Uw3KQuOMHANR23uL

    • Remove 4 screws from corners using T-6 screwdriver.

    • NOTE: Bottom two screws are gold.

    • NOTE: Make sure screws return to correct place when reassembling.

  4. TLsuYbaO2tDdPLk4
    TLsuYbaO2tDdPLk4
    NJrAQrc4fVJt6CVY

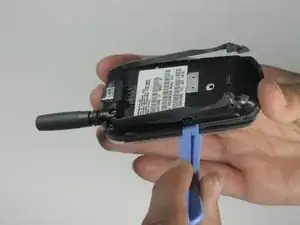

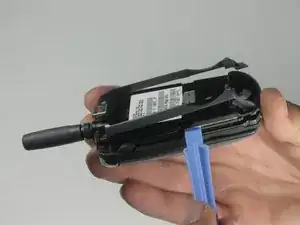

    • Use a plastic opening tool to pry up back cover from the two side clips.

    • NOTE: sticker might be attached to rest of phone.

  5. mY1NlRBJMINLA51W

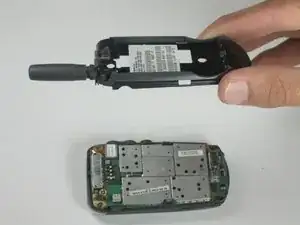

    • Remove the back cover.

  6. 4ZlohBlLc5lbJYpX
    4ZlohBlLc5lbJYpX
    FZmx6YkqRldEEhSf

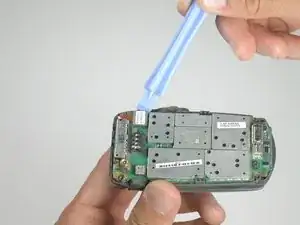

    • Use a plastic opening tool to gently remove the orange ribbon cable.

    • Lift up the main logic board to remove.

Conclusion

To reassemble your device, follow these instructions in reverse order.
