Motorola V60c Side Buttons Replacement

Written By: Ryan Kuroiwa
  • Comments: 1
Motorola V60c Side Buttons Replacement

Difficulty

Easy

Steps

7

Time Required

10 - 15 minutes

Introduction

How to replace the side buttons.

  1. SCGYqgMxGYZ6wQbJ
    SCGYqgMxGYZ6wQbJ
    imPKO2NDYNFJRWLw

    • Depress the silver button.

    • Pull from top of phone to lift the cover.

    A spudger may be helpful

    Nick -

  2. TRwtCDgwjFUyjIFe
    TRwtCDgwjFUyjIFe
    2UDeDfDlA1yFqbsE

    • Hold battery from both sides at the bottom.

    • Push upwards and gently lift to remove.

  3. 5IOodseYBvgtOVZx

    • Remove 4 screws from corners using T-6 screwdriver.

    • NOTE: Bottom two screws are gold.

    • NOTE: Make sure screws return to correct place when reassembling.

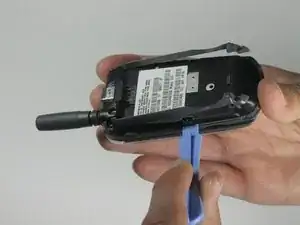

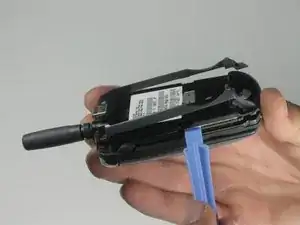

  4. qyPDflhMPPsRYYAB
    qyPDflhMPPsRYYAB
    JXNNmFBmdlDF6yqX

    • Use a plastic opening tool to pry up back cover from two side clips.

    • NOTE: sticker might be attached to rest of phone.

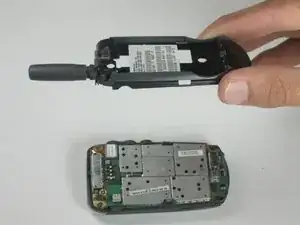

  5. nwiQkYPehvBKMJnL

    • Remove the back cover.

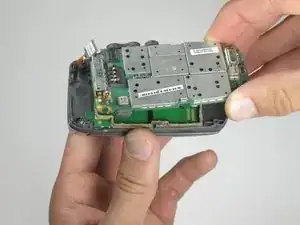

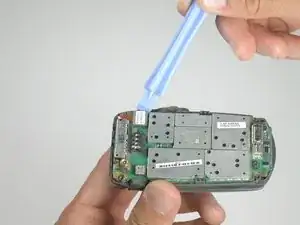

  6. 2FROUbfjLtBYrHHd
    2FROUbfjLtBYrHHd
    D6U4KQ4y4oSL3Jag

    • Use a plastic opening tool to gently remove the orange ribbon cable.

    • Lift up the main logic board.

    • NOTE: Rubber side buttons are not secure and might detach from the main logic board during removal.

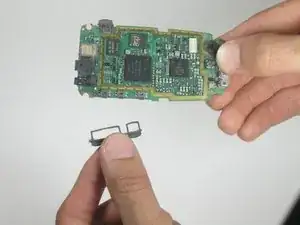

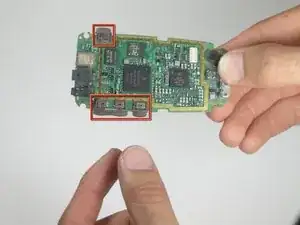

  7. yAr5drPlvsWMKWla
    yAr5drPlvsWMKWla
    2KVtgaoJiTIIJNFT

    • Carefully flip over main logic board.

    • Remove rubber side buttons.

Conclusion

To reassemble your device, follow these instructions in reverse order.
