Introduction
Once the back cover, battery, and motherboard have been removed, the keypad can accessed.
-

                  -
            Slide the cover release button towards the bottom of the phone
-
            Once the battery cover pops up, slide the cover towards the top of the phone and lift up.

-

-

                  -

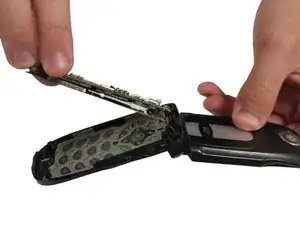

            Lift the motherboard away from the case of the phone, being careful not to break the wire that goes up into the hinge.
-

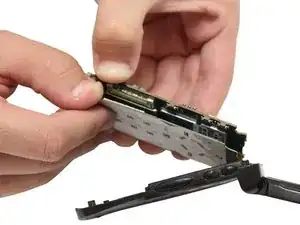

            Peel the motherboard off of the keypad. The two pieces are glued together and separate without much effort.
-

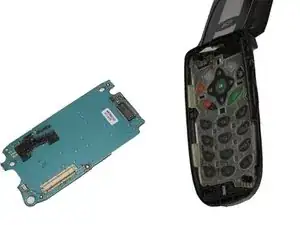

            The motherboard should now be completely disconnected from the phone.

-

-

                  -
            Once the motherboard has been removed from the keypad, the keypad sensor can be detached from the phone at the hinge.
-
            Gently pry off the cable connecting the keypad sensor. The keypad sensor should now be completely separated from the phone.

-

To reassemble your device, follow these instructions in reverse order.
