NETGEAR WGT624 v3 Capacitor Replacement

Written By: Jonathon Sather
  • Comments: 1
NETGEAR WGT624 v3 Capacitor Replacement

Difficulty

Moderate

Steps

10

Time Required

15 minutes

Introduction

This guide will demonstrate how to remove the capacitors in order to replace them. Soldering and de-soldering will be required.

  1. V6qAE3xo3ETcsUPt

    • Turn the device so that the bottom is facing up.

  2. HfLKlfn1POushN5C
    HfLKlfn1POushN5C
    T1rdEJuU51M4xIcp
    xRxFBxwNoyTOTkyE

    • Use the plastic opening tool to carefully lift the rubber stops in each corner.

    • Do not completely remove the rubber stops, because they are difficult to replace.

  3. X5cBjW2YyNFv1tGI
    X5cBjW2YyNFv1tGI
    5u4cfJdemplNBtJx

    • Unscrew the 4 11.8 mm T-8 Torx screws from each corner of the device.

  4. WQMOmqQGAwLrFm4X
    WQMOmqQGAwLrFm4X
    VIHvuhBSJh4wwXSl

    • Lift the lower case straight up from the rest of the router.

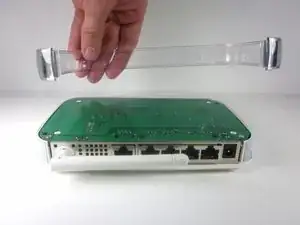

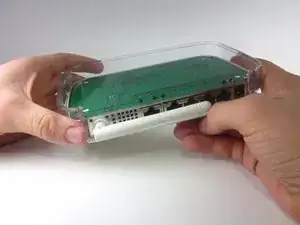

  5. XsWUcfGOXxeAuJWV
    XsWUcfGOXxeAuJWV
    MjXFBtnDHAOIjeGJ

    • Remove the clear plastic casing by lifting it straight up from the router.

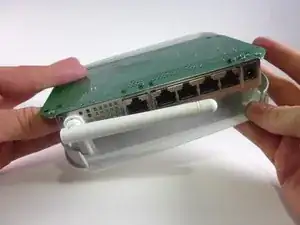

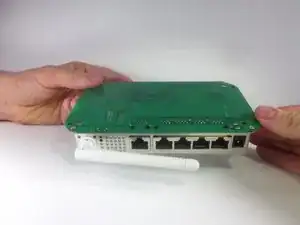

  6. hEpVMWvM2COMejTi
    hEpVMWvM2COMejTi
    pLXdfUslHSgU1Pn4

    • Separate the motherboard from the top shell by lifting it straight up from the router.

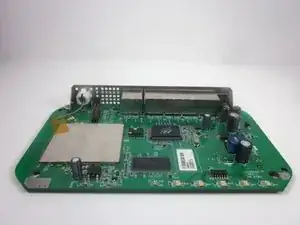

  7. fwZjxXQZLLbjW1NC

    • Turn the motherboard so that the top is facing upwards.

    • Place the motherboard on a clean flat surface.

  8. 1XofZY4QJIjpGc5Y

    • Locate the four capacitors.

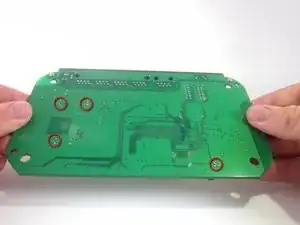

  9. i5TyR1lsOZQ1OBPe
    i5TyR1lsOZQ1OBPe
    Lt5FOtTZSmqcE1kq

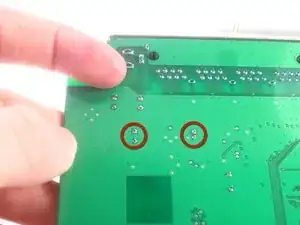

    • Turn the motherboard so that the bottom is facing upwards.

    • Locate the two soldered contacts for each capacitor.

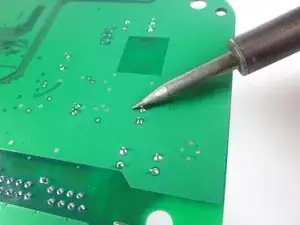

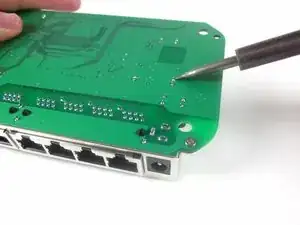

  10. b1le5GYR3Hi2qY3d
    b1le5GYR3Hi2qY3d
    cVsAgpBYoRAYvm4L

    • Do not refer to the pictures in this step for correct soldering and de-soldering techniques. They are solely for illustration purposes.

    • Desolder the soldered connections between the capacitors and the motherboard, and pull the capacitor from the motherboard.

    • For proper soldering and de-soldering techniques, refer here.

    • When reinstalling the capacitor, make sure the negative side of the capacitor is aligned with the shaded white region of the circle.

Conclusion

To reassemble your device, follow these instructions in reverse order.
