Neo3Do Battery & LED screen Replacement

Written By: Daniel Evans
  • Comments: 1
Neo3Do Battery & LED screen Replacement

Difficulty

Difficult

Steps

18

Time Required

No estimate

Introduction

  1. WLIQT2yeRhESSSk1
    WLIQT2yeRhESSSk1
    pvUTHgAqlMuZsFOM
    gtg2rcUftvY3enYw

    • Turn the Neo3DO face down so that the logo is facing toward you.

    • Insert the plastic opening tool between the metal frame and the plastic back panel, as shown.

  2. SiCUBXXuSMphNXfy
    SiCUBXXuSMphNXfy
    jXu5HqcAmvxpLDEs

    • Gently pry the back panel upwards.

    • Ensure the tool does not slip into the device and damage the internals.

  3. 6TVZZnRjWJfOD3DV
    6TVZZnRjWJfOD3DV
    c6XchieU5seNnCTu

    • Once the back panel has been pried away from the bottom and sides of the Neo3DO, lift the back panel up and away from the tablet.

  4. CbBVdF3VirOerJuG

    • When replacing the back panel, place the top edge of the back panel against the top edge of the Neo3DO, as shown.

    • The top edge of the device is the edge closest to the camera. The top of the back panel is the side with the hole for the camera.

  5. GrlHGWJGXMGo1cxA
    GrlHGWJGXMGo1cxA
    kMvaDQTqTieGdN62
    NJLpWtFZpZxXbAiE

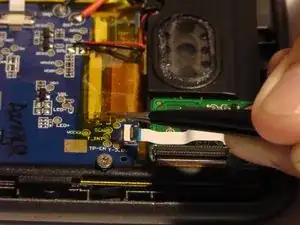

    • Remove all the tape attached to the motherboard.

  6. 35jgZJG1FPKnQbkQ
    35jgZJG1FPKnQbkQ
    r6pGaxNbnZSHSEMx
    MLYadHASbyvodQaq

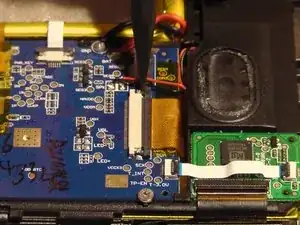

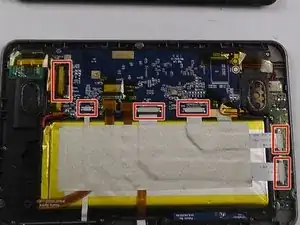

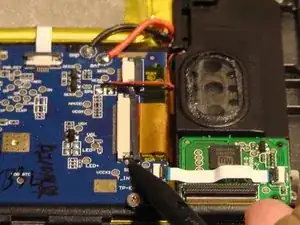

    • Pull out the black tabs using the plastic spudger.

    • All sockets that require the same step are marked in the first photo.

  7. BIuaDsGa2idgCaXw
    BIuaDsGa2idgCaXw
    oxpEkOlqcHeNygis

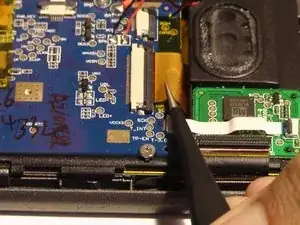

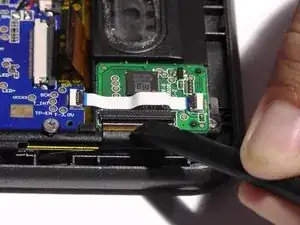

    • Remove the wire belt from the socket.

  8. GATSZMcUrGWqjOrT
    GATSZMcUrGWqjOrT
    S5YIDJU3ORginlFi
    NVFtyBS5O3W5Ae16

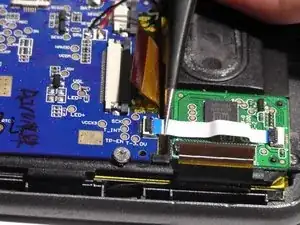

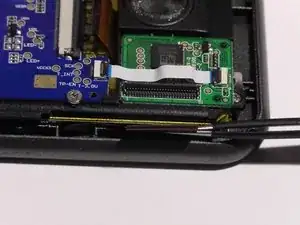

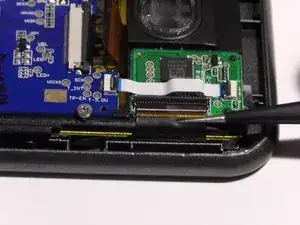

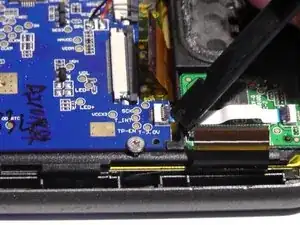

    • Lift the black tab and then remove the wire belt.

  9. Kqu26m4xsMRKwZOF
    Kqu26m4xsMRKwZOF
    SLjwYwYd6EnDEUXf
    fRxrACJZU4aK5oOq

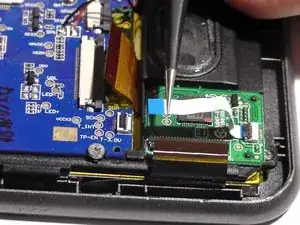

    • Lift the black tab and then remove the wire belt.

  10. eRJD2ibu6cKWOcGs
    eRJD2ibu6cKWOcGs
    EHbZUAFa1GMh52Z4
    4yL142XsGkZDQcQQ

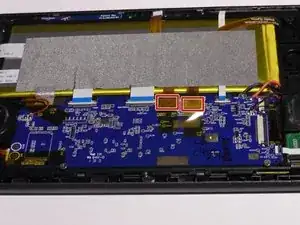

    • Grip the side of the tab and pull upwards to remove it from the socket.

    • All sockets that require the same step are marked in the first photo.

    • Gripping the wire belt and pulling upwards may cause damage, be sure to avoid it.

  11. PnIehR1jY2rnXjqX
    PnIehR1jY2rnXjqX
    4ap6K2h5mikWIOlk

    • Remove the screws using the J0 head screwdriver.

    • All screws that require the same step are marked in the first photo.

  12. RgNnETEbDQdpCwbG
    RgNnETEbDQdpCwbG
    fltnPkZkFL4w1RdY
    Je3BAjKGhJY4WErk

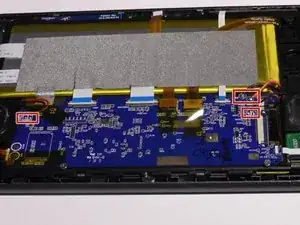

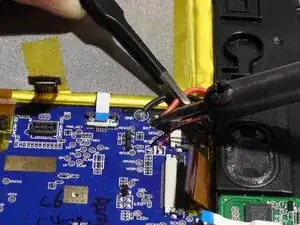

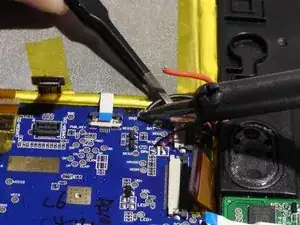

    • Grip the active(red) wire and apply the soldering tool until the solder is soft enough for the wire to be removed.

    • Repeat the same process to remove the neutral(black) wire.

    • All wires that require the same steps are marked in the first photo.

    • The soldering tool is extremely hot, use with caution.

  13. hDDWnKiBsJgolKeZ
    hDDWnKiBsJgolKeZ
    SviVkKSOlZk3jXKO
    ymGQVRHEFELL4FMN

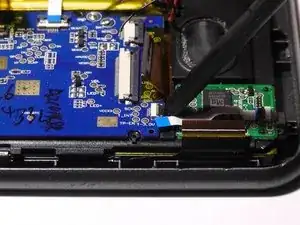

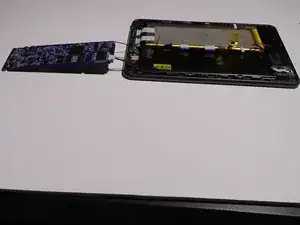

    • Use the flat end of the plastic spudger to remove the motherboard and turn it underside-up.

  14. da3ZkbwjMqMOXaCc
    da3ZkbwjMqMOXaCc
    lxETmiMMjbnQi3lV

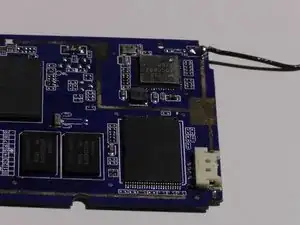

    • Remove the plug from the motherboard socket.

  15. BWGVp5JeKHYXflNE
    BWGVp5JeKHYXflNE
    IFwvuUjmvEUXEtPj
    RDqanNHRpJuKlVj6

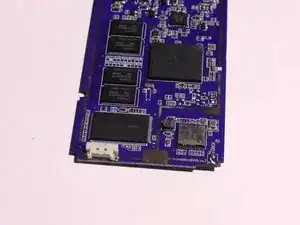

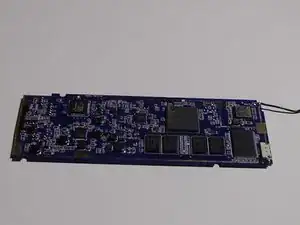

    • Grip the wire and apply the soldering tool until the solder is soft enough for the wire to be removed.

    • The soldering tool is extremely hot, use with caution.

  16. tZvxSmNvP1qB4Vyn
    tZvxSmNvP1qB4Vyn
    QXSngGIu3ZAKyNhv

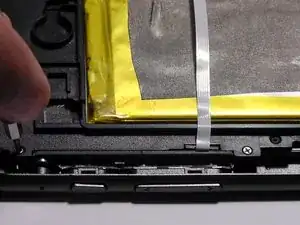

    • Remove the screws with a J000 screwdriver

    • All screws that require the same step are marked in the first photo.

  17. H6m4fevIEDZaQNQk
    H6m4fevIEDZaQNQk
    BL6VOYlVU3K1e1RI

    • Use the plastic removal tool to remove the plastic frame.

  18. 6oXXXvnHPOgJsGSQ
    6oXXXvnHPOgJsGSQ
    TnQeQqTsP2fTdGEm
    CD5HXUU3vJ1SxkVV

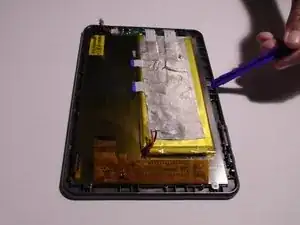

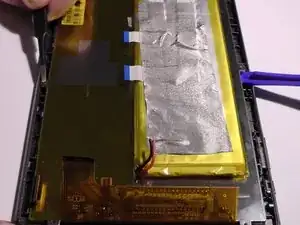

    • Using the plastic removal tool, lift the LED screen from the battery side, and use the tweezers to help lift the LED screen upwards.

Conclusion

To reassemble your device, follow these instructions in reverse order.
