Nest Cam Outdoor S Battery Replacement

Written By: Phelix Gaudette
  • Comments: 4
Nest Cam Outdoor S Battery Replacement

Difficulty

Easy

Steps

5

Time Required

No estimate

Introduction

  1. aDDImaAWumOqrWe4
    aDDImaAWumOqrWe4
    OJRYBFLae3SykiOX

    • Wedge a spudger between the black front panel and the white outer shell.

    • Slide the spudger around the edge of the panel to pop it off.

  2. ID31UOMX3EJHycwM

    • Remove the four small screws from the plastic camera cover.

  3. FsuOYVyokeMqbT3N

    • Disconnect the microphone cable to separate the motherboard from the main camera unit.

  4. 6pUdYfcNeH3BoNHh
    6pUdYfcNeH3BoNHh
    ycPOLqd3ojrIOV3d

    • Remove the plastic camera cover from the device.

  5. A6vIITK35SJYpyYj
    A6vIITK35SJYpyYj
    NMHjnP4b1wgaSP6V

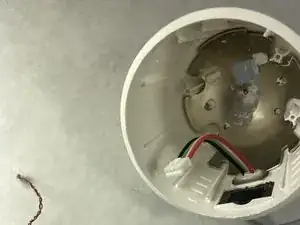

    • Wedge a nylon spudger between the white outer shell and the battery.

    • Slowly pull the battery away from the plastic camera cover.

    • The battery is only held on with glue.

    Not enough detail to finish the dismantling although it was a bare start

    David Ewing -

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Phelix Gaudette

Member since: 28/10/21

275 Reputation

3 comments

Do you have the P/N of the battery??

Richard K Yabuki -

Where to buy a replacement battery?

Ted McKenna -

I believe the battery model is GS24 (3.65V, 600 mAh/21.9Wh).

I also saw this on the battery

GPN: G823-00181-01

Dung Huynh -
