Nexus One Secondary Microphone Replacement

Written By: Niklas Johnson
  • Comments: 2
Nexus One Secondary Microphone Replacement

Difficulty

Moderate

Steps

12

Time Required

20 - 30 minutes

Introduction

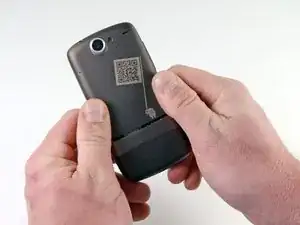

  1. uLlMFMhZqIIv3caX
    uLlMFMhZqIIv3caX
    VvvWIQV4IhighMT5

    • Using two fingers, push up on the rear cover.

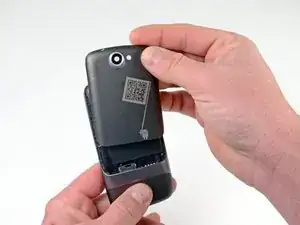

  2. W1WIrx2VbRpWGxKX

    • The rear cover slides up and off.

  3. DXcrcy1T6vY3HEWU

    • Using the plastic opening tools, pry the left bottom corner of the battery up.

    The battery is user replaceable you don't need a pry tool! That would be a huge pointless waste of plastic don't tell people to buy it for this type of "repair?'

    Dominic Owen Moss -

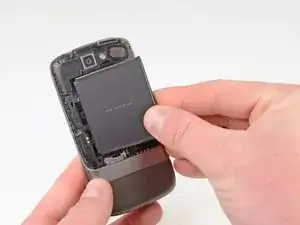

  4. oHgCrbeRKYNsKGyW

    • Pull the battery up and out.

  5. LEk4TtIlJpNBnkLG

    • Remove the two Torx T5 screws.

    • Remove the one Philips #00 screw.

    #0 Phillis screw

    skuhry -

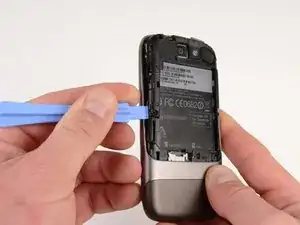

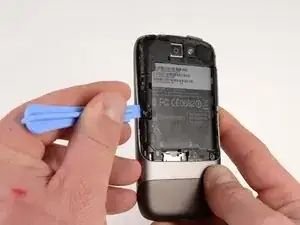

  6. AVHTJRTTmHURrqWr
    AVHTJRTTmHURrqWr
    DFrOaUx4hjItP3UE

    • Using the plastic opening tool, pry up the battery housing upwards.

    • Push pry tool down, undoing the plastic tab.

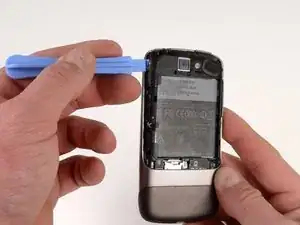

  7. fBve6wgcClcIKG5q
    fBve6wgcClcIKG5q
    d6FAlJcMTtpDLdHk

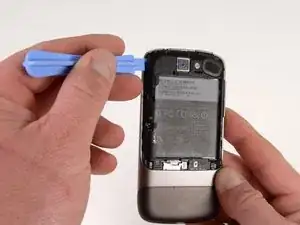

    • Pry the upper left tab open on the battery housing.

  8. ZYjsMVCidphXMyax
    ZYjsMVCidphXMyax
    XHJ5vDEoxHwmFQDR

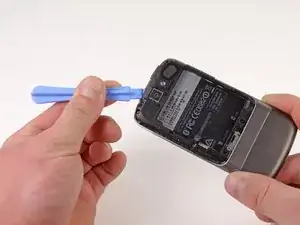

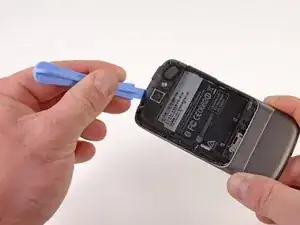

    • Pry the top tab of the battery housing.

  9. IqJXdHPhdvbQoDe2
    IqJXdHPhdvbQoDe2
    EP3MoAITbalwK6PZ

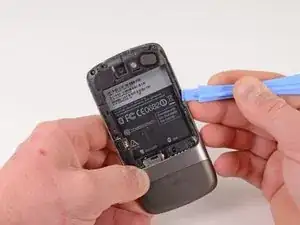

    • Pry the right side tab of the battery housing.

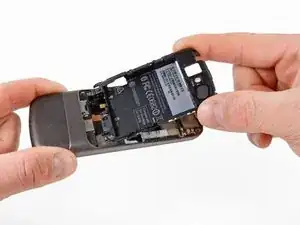

  10. crX1ZluSiKZIiaWi
    crX1ZluSiKZIiaWi
    RZnGp4KEQgTZDiAU

    • Pull up on the battery housing.

    • Slide the battery housing out to remove it.

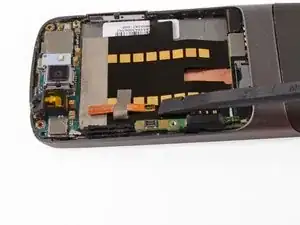

  11. I3qT34DjMcl4VINg
    I3qT34DjMcl4VINg
    qEvkAtgIA35dMHEL

    • Using the spudger, pry upwards on the second microphone connector.

  12. W5MeQxgswUIoNNDr

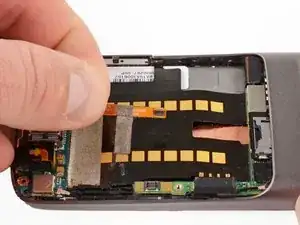

    • Pull up on the ribbon cable, the tape will detach from the main board ribbon.

Conclusion

To reassemble your device, follow these instructions in reverse order.
