Ninja Kitchen System Pulse Motor Replacement

Written By: DJ
  • Comments: 2
Ninja Kitchen System Pulse Motor Replacement

Difficulty

Moderate

Steps

4

Time Required

4 - 8 minutes

Introduction

You will learn how to remove the motor from the base to check for frayed wires and/or loose screws.

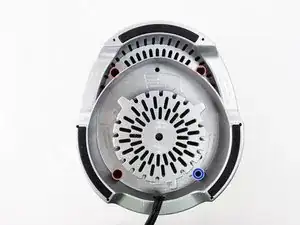

  1. gXRjEPtCFOKUTVTX

    • Take out the three 15 mm Phillips #1 screws.

    • Remove the 15mm T10 screw.

    • Place the 4 screws on the magnetic mat.

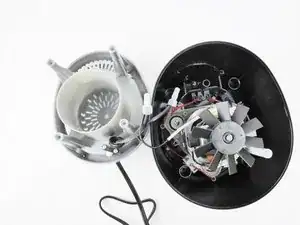

  2. Mhwa2IgpN1lSw2PV

    • Remove the gray base by lifting upwards and placing to the side.

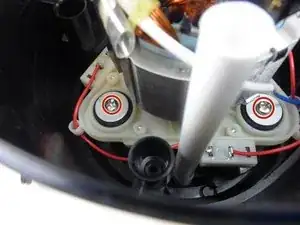

  3. QOOGQxkqUgMEsQPt

    • Remove the three 15 mm Phillips #1 screws.

    • Place screws on magnetic mat.

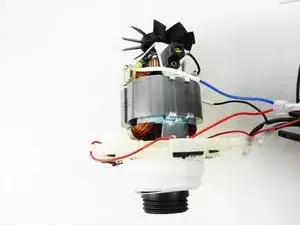

  4. dCYCOcX3fvoKaRCe

    • Remove the motor by gently lifting up. Be careful with the cords, as they may be tangled.

    • This is the entire motor for the Ninja. If you have access to a spare motor, simply swap out the motors.

    how do you get the top wheel off that spins the blender cup device itself? The part that goes through the plastic housing from the motor?

    Jamie Owens -

Conclusion

To reassemble your device, follow these instructions in reverse order.
