Nintendo Wii U Button Replacement

Written By: Emily Vasquez
  • Comments: 4
Nintendo Wii U Button Replacement

Difficulty

Moderate

Steps

9

Time Required

10 - 20 minutes

Introduction

Use this replacement guide for step-by-step instruction on how to replace the power and accompanying buttons on the Wii U console's front face panel.

  1. RjHpgqQv5vYQLg3V
    RjHpgqQv5vYQLg3V
    VCMoIsejV3bTKsh5

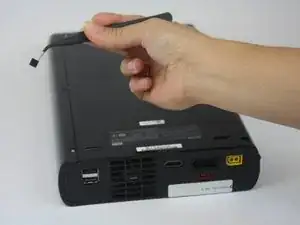

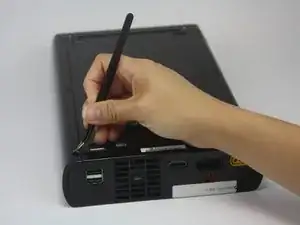

    • You will first need to find all the screws hidden underneath the black (or white) square stickers. They are all located on the bottom side of the Wii U.

    • Use a spudger to remove the stickers if it is difficult to peel off with your fingers.

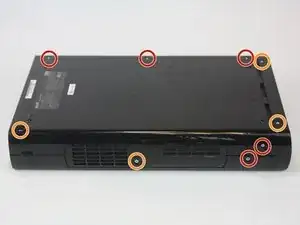

  2. v5jVB6NLFDAcNu2O

    • Remove the five Phillips #0 screws.

    • Remove the four Tri-Wing Y1 screws.

    Looks like one of the screws labelled as tri-wing here is actually a phillips.

    CPR Stadiumvillage -

  3. 3JryRkKMIVCfZGeE
    3JryRkKMIVCfZGeE
    XoLCIssSxBuRMy1c

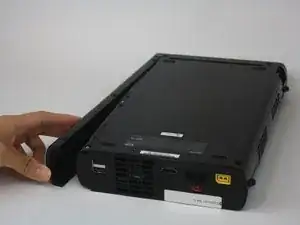

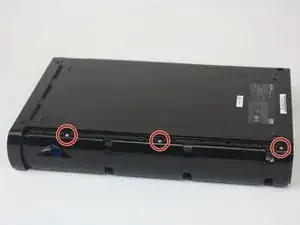

    • Remove the CMOS battery door on the left side of the console.

    • Once the door is removed, remove the three Phillips #0 screws.

    Looks like these are Y1 screws

    CPR Stadiumvillage -

  4. 1f14uFjtMkQ1ltDN
    1f14uFjtMkQ1ltDN
    SvXWHpkcpjVhV4sl
    MNnWbN1twtttd3aQ

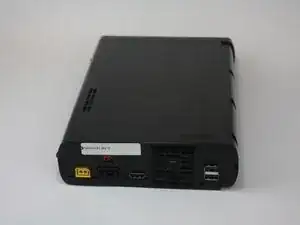

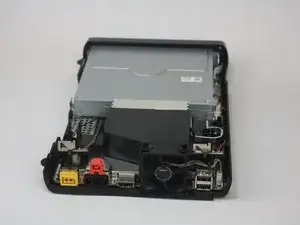

    • Gently pry off the top lid of the Wii U.

  5. gACimHiAXOsF1XPj
    gACimHiAXOsF1XPj
    VIryVuwbiTfsuFGe
    lKQC6CsPg3YB4SD3

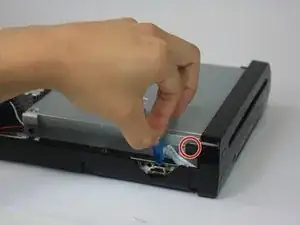

    • Rotate the device so that the front plate is facing you.

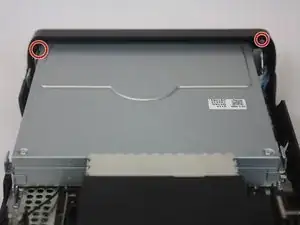

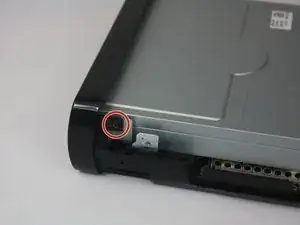

    • Remove the two Phillips #1 screws.

    The one on the left was so tight it stripped extremely easily and won’t even budge when I have a good grip on it.

    Jake -

  6. BtdLfthoYhHhG3aT
    BtdLfthoYhHhG3aT
    QVJ2CfEygljYQQPW
    DAxuZrYypgCiTRqg

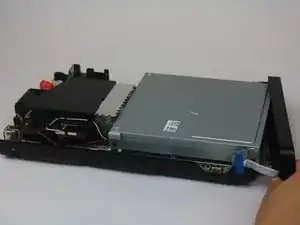

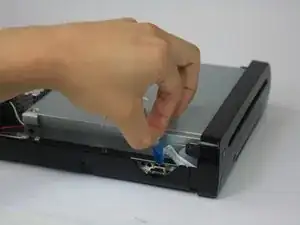

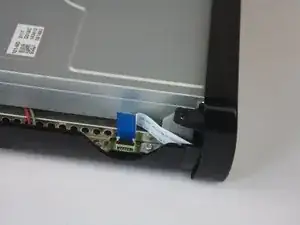

    • Remove the ribbon cable and separate the front plate from the main console.

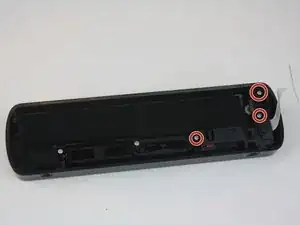

  7. uNnQxCXRUCeJ2GFW

    • Remove the three Phillips #1 screws.

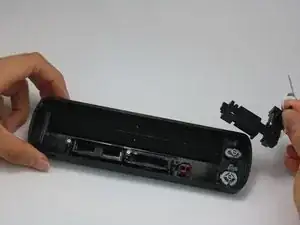

  8. yKLZVUgwQfaDLu5g

    • Once unscrewed, remove the black braces that hold the power button, eject button, and sync button in place.

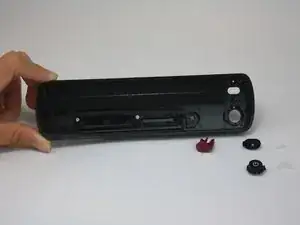

  9. t1yESrDgmJxvDXlm

    • Remove the desired button(s).

Conclusion

To reassemble your device, follow these instructions in reverse order.
