Introduction
This guide will show you how to install a new motherboard and keyboard unit in your phone.
Tools
-
-
Flip the phone over so that the screen faces down.
-
Press the gray button on the battery cover and slide it down off the back of the phone.
-
-
-
Wedge the flat end of the spudger into the small indent next to the Nokia logo on the battery.
-
Gently pry the battery out of the phone.
-
-
-
Remove the six 6mm T6 Torx screws around the edge of the front of the phone.
-

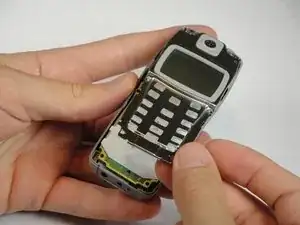

Remove the metal frame holding the screen and speaker.
-
-
-

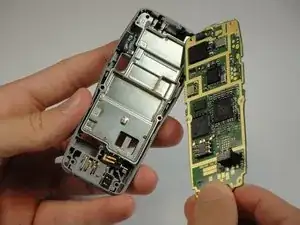

Gently lift motherboard unit out of the case.
-
The motherboard and keyboard are one unit and are replaced together.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
