Introduction
Use this guide to replace the screen in your phone.
Tools
-
-

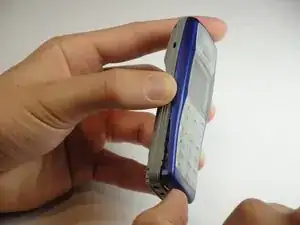

Flip the phone over so that the screen faces down.
-
Press the gray button on the battery cover and slide it down off the back of the phone.
-
-
-
Wedge the flat end of the spudger into the small indent next to the Nokia logo on the battery.
-
Gently pry the battery out of the phone.
-
-
-
Firmly grip the back of the casing.
-

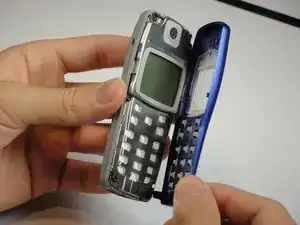

Separate the front and back casings either by pulling them apart from the middle or gently prying the front off with your fingers from the bottom.
-
-
-
Remove the six 6mm T6 Torx screws around the edge of the front of the phone.
-

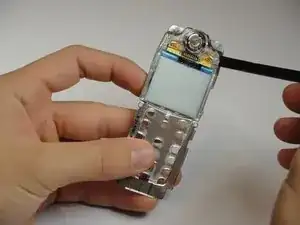

Remove the metal frame holding the screen and speaker.
-
-
-
Flip over the metal frame you just removed.
-

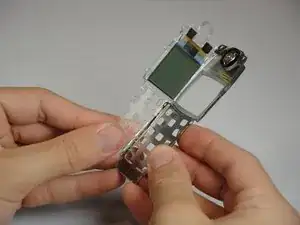

Using the flat end of the spudger, pry apart the inner clear plastic frame with screen attached from the metal frame.
-
Remove the screen bearing plastic frame.
-
To reassemble your device, follow these instructions in reverse order.
