Introduction
To replace the screen, phone disassembly is required.
Tools
Parts
-

                  -
            Press down on the small gray button located on the back of the phone.
-
            Slide the back plate down and off.

-

-

                  -
            To remove the battery, begin by holding the phone sideways.
-
            Then, insert your thumb in the groove below the battery and push the battery up and out.

-

-

                  -
            Locate the spudger. A photo of the correct spudger is provided to the left.
-
            Turn the front of the phone to face you. Find the two small square holes on the bottom left and right sides of the faceplate.
-
            Insert the spudger into each square hole and push up to detach the face plate.

-

-

                  -
            Note: The keypad will be loose and may fall off during this step.
-
            Pull the face plate up and off of the phone.
-
            To remove the keypad, simply lift it off the phone.

-

-

                  -
            Locate the 6 screws on the metallic sheet that previously held the keypad. (This sheet, shown in the pictures, is the top side of the motherboard).
-
            Warning: The middle two screws are attached to the base of the phone with two black plastic rings. Use tweezers to remove the screws carefully to avoid breaking the plastic rings
-
            Use a size T6 Torx screwdriver to remove each of these 6 screws.

-

-

                  -
            Turn the screen/motherboard so that the screen side is facing down as shown in the first picture of this step.
-

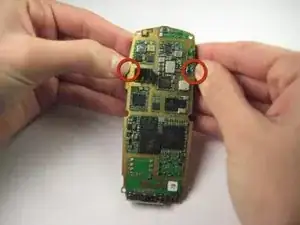

            With your fingers, push the black tabs on the upper left and upper right sides of the motherboard outward. You can see this in the second picture of this step.

-

-

                  -
            Turn the motherboard so that the screen faces upward, as seen in the photos.
-

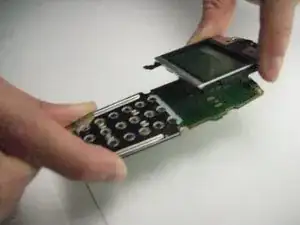

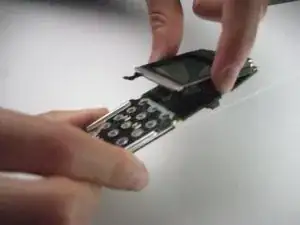

            Holding the sides of the screen, pull the screen up and off of the motherboard.

-

To reassemble your device, follow these instructions in reverse order.
