Nokia 6030 Speaker/Antenna Replacement

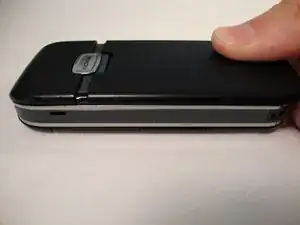

Press down on the grip on the back of the phone and slide the rear housing down towards the bottom of the phone.

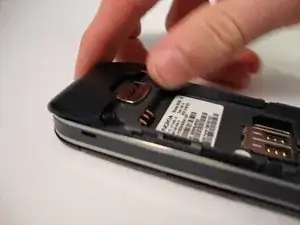

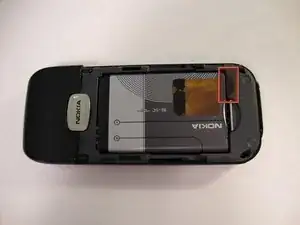

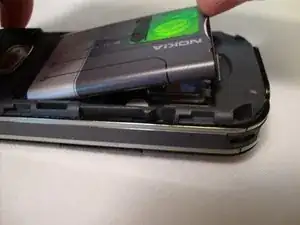

Use your finger to gently pull the bottom of the battery up by using the slip found at the bottom of the phone.

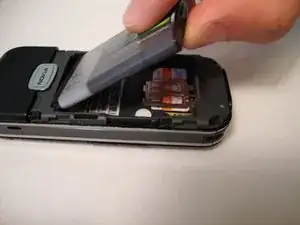

Lift out battery and remove.

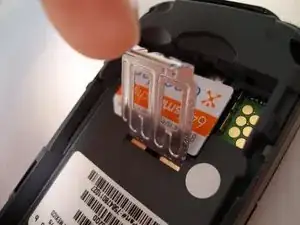

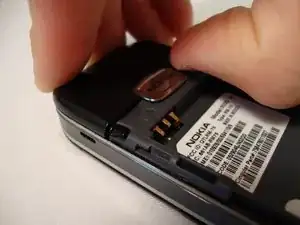

Use your finger to lift the metal cage up.

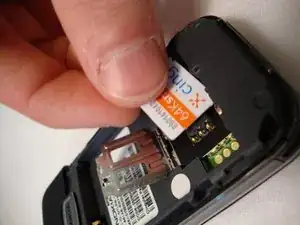

Remove SIM card.

Use your finger to close the metal cage.

Insert your two fingers under the two tabs found at the top of the phone underneath the black casing, then pull the casing up and slide it out slowly.

After removing the top cover, turn the phone over so the screen is facing upwards.

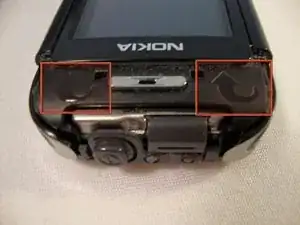

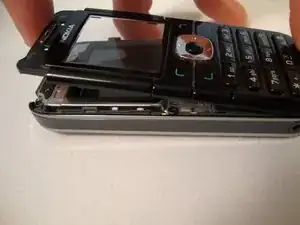

Use your fingers to slowly lift the screen back towards the bottom of the phone using the arrows found at the top of the phone.

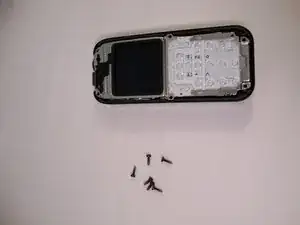

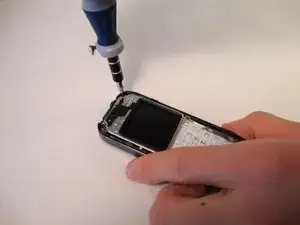

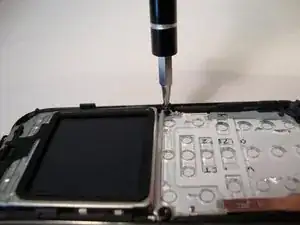

Remove the six screws with a T-6 Torx screwdriver.

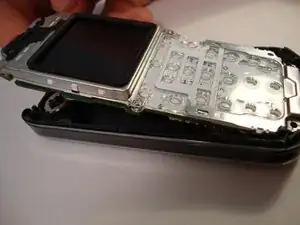

Lift the logic board and screen from the top.

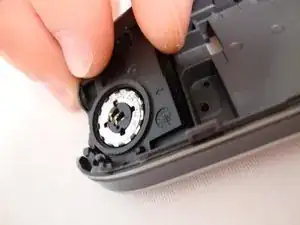

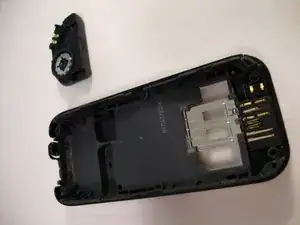

Lift the speaker out of the back housing of the phone.

The speaker should come out with little effort.
