Introduction
Tools
-

                  -
            Remove the back cover of your cell phone by applying slight pressure with your thumb and pushing up towards the top of the phone.
-
            Lift off back cover.

-

-

                  -
            Use your index finger to first push down and then lift up the battery as shown.
-
            Remove battery from cell phone.

-

-

                  -

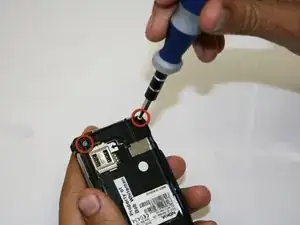

            Unscrew two T5 torx screws easily visible on the back side of the cell phone
-
            Screws: 7.8mm
-

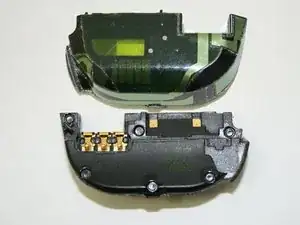

            Once screw are removed, the phone will separate easily into two pieces connected by a flexible wire strip.

-

-

                  -

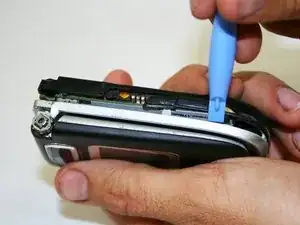

            Use an iPod opening tool to gently pry open the back case as indicated in the picture.
-

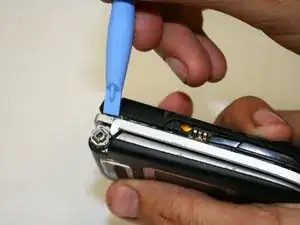

            Work your way down the side of the phone starting from the top down to the bottom. (Use multiple prying tools if necessary)
-
            REPEAT on both sides, and be careful not to stab the circuitry with the tools.

-

-

                  -

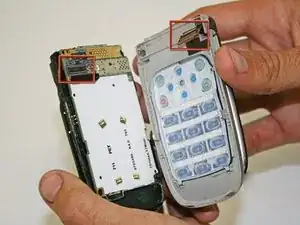

            Gently pull the phone apart and the flexible wire should detach from its connection as shown.
-
            If not, lift up on the black tab within the left box in the picture.
-

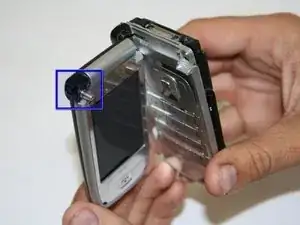

            With the front half of the phone, push the keypad towards the removed portion of the phone.
-
            To clean, use a damp cloth with water.

-

-

                  -
            Use a T6 Torx Screwdriver to remove the screw located in the bottom right corner of the back panel.
-
            Screw: 6.4 mm

-

-

                  -

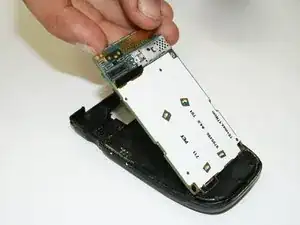

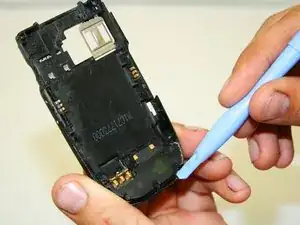

            After removing the logic board from the back of the phone, pry the speaker out from the bottom with an iPod opening tool.

-

To reassemble your device, follow these instructions in reverse order.
