Nokia 6590i Speaker Replacement

Written By: Colby Leslie
  • Comments: 0
Nokia 6590i Speaker Replacement

Difficulty

Moderate

Steps

11

Time Required

5 - 10 minutes

Introduction

This guide will show you how to remove the Speaker from the phone.

  1. PL5bmWPJGIU1cTgT
    PL5bmWPJGIU1cTgT
    sMRLydCeSd2YDWNL

    • Press the button on the bottom of the rear cover.

    • Keep the button pressed while pulling the cover downward to remove the back cover.

    • Lift the cover off.

  2. qlsG3bDnbrNHNfUM

    • To remove the battery, push it down from the top and pull it out.

  3. fDLMdgCBoUKgFsSP

    • Grip the front cover from the bottom.

  4. QnhHLEGMjTLCyZ4R

    • Lift the front cover off.

  5. iaUI3oyre5yvqv4c

    • Remove the six screws using a T6 torx screwdriver.

  6. JPK6kg3gEgyqYmdM

    • Insert spudger along edge of assembly and gently lift assembly away from case

  7. Ovelo3yQUKEGRsAs

    • Remove assembly from phone

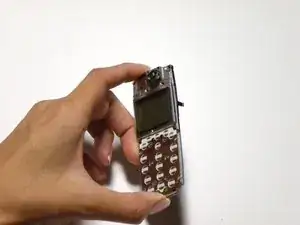

  8. PXY4oPJUGYT4T2ts

    • Flip assembly over

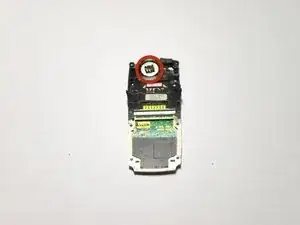

  9. bQgldwfQRnxHPcit

    • Locate speaker on the back of the assembly.

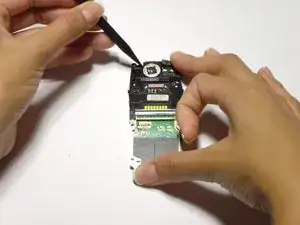

  10. 6dQOZEkFmVlaNODr

    • Insert spudger under upper left side of speaker and gently lift to remove

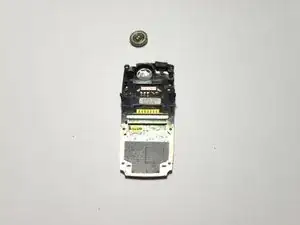

  11. ZEcIsYBhGEHP2vyW

    • Remove speaker.

Conclusion

To reassemble your device, follow these instructions in reverse order.
