Nokia Lumia 635 630 Display Assembly Replacement with Frame

Written By: ZFix
  • Comments: 3
Nokia Lumia 635 630 Display Assembly Replacement with Frame

Difficulty

Easy

Steps

4

Time Required

10 - 15 minutes

Introduction

How to disassemble the phone and replace the display assembly - Touch screen glass, LCD Display and middle frame.


  1. 2oMDKObkquFO5XQp
    2oMDKObkquFO5XQp
    EhBrZ6cFMS6Itfmf
    BpKs6l45QdeuQOJx

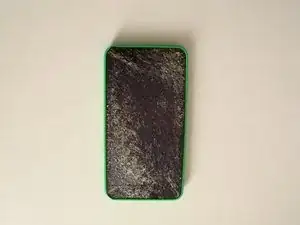

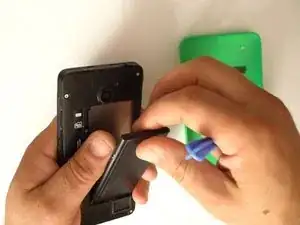

    • Remove the battery and any SIM and memory cards.

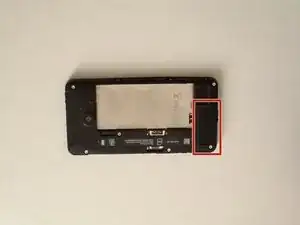

    • Remove the black sticker at the bottom side of the phone.

  2. YfmNGNtWkiTaD6aH
    YfmNGNtWkiTaD6aH
    LekTdGanhjVOofIq
    3JatQfOCbpvwaUgN

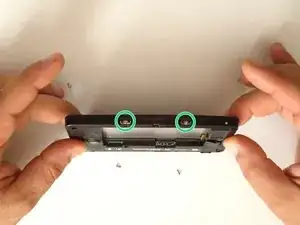

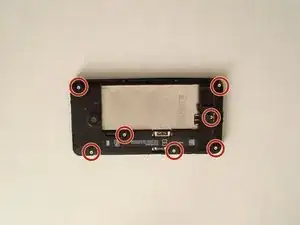

    • Use a screwdriver Torx T4 and remove the 7x screws.

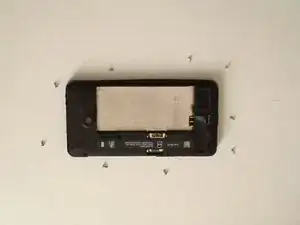

    • There are two other smaller screws with the same head size – remove them as well.

    You need a decent quality T4 screwdriver here - the rubbish on that cm free with the screen assembly I bought failed completely to grip or loosen the screws. With one from a decent set (ForgeSteel from ScrewFix) they came out easily. A fridge magnet is useful to keep the screws on.

    jeremyyoung -

  3. DyPfNUAWPPIthpOm
    DyPfNUAWPPIthpOm
    TAGD5lArZTBVAFhk
    tYVkoFHqLTPDVQqq

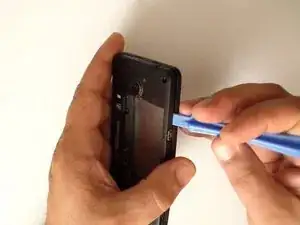

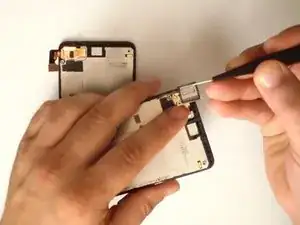

    • Lift the rear bezel and unhook the display assembly flex cable.

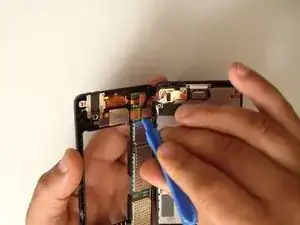

    • Don't use a metal tool for disconnecting the flex cable. There are many small elements near the connectors. You could break them. If you don't have a suitable tool just use your nails.

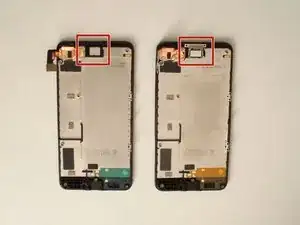

    • Now we have to transfer the earpiece.

  4. UrLKOUgPqbAiXdpL
    UrLKOUgPqbAiXdpL
    LdE3wOpymvJLSPvS
    dbPClCUOHUU2fEEM

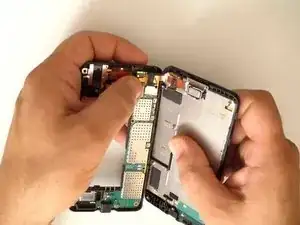

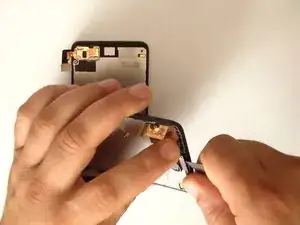

    • Put the earpiece on the new display assembly and start with reassembling.

Conclusion

To reassemble your device, follow these instructions in reverse order.
