Nokia Lumia 720 Earpiece Replacement

Written By: ZFix
  • Comments: 0
Nokia Lumia 720 Earpiece Replacement

Difficulty

Moderate

Steps

8

Time Required

15 - 20 minutes

Introduction

Nokia Lumia 720 - How to disassemble the device and replace the Earpiece / Speaker.


  1. uKbOhaN5EoJOvjWj
    uKbOhaN5EoJOvjWj
    XxwAFxpinUPOOVdb
    y11pY4kg2XjZUOlG

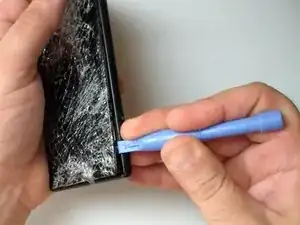

    • Remove the SIM card tray and the memory card try.

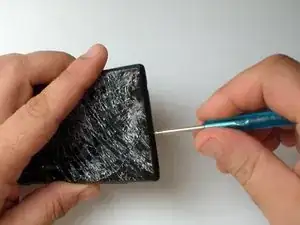

    • Use a screwdriver Torx T2 and remove the screw under the SIM card tray.

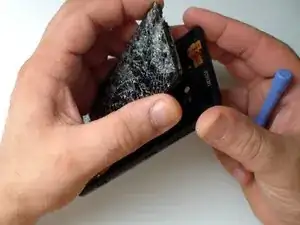

    • Use plastic tools and start the separating the back cover from the top side.

  2. CVXgoDCahMVFFpMS
    CVXgoDCahMVFFpMS
    YbjWFBgiwSZD23TW
    woCWBstDsjqJjNAi

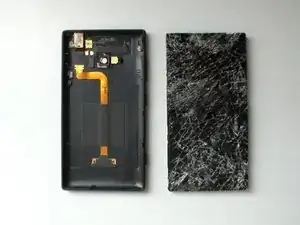

    • Be careful with the volume buttons.

  3. cByaWdPuskEgFb4y
    cByaWdPuskEgFb4y
    OIUVDCudoaqMTjgB
    JUSHuXUvjeoRsYF3

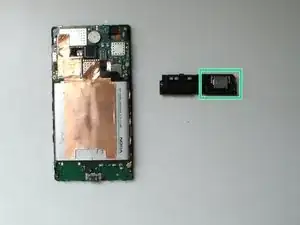

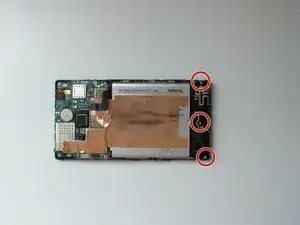

    • Remove the 3x Torx T4 screws.

    • Buzzer / Loudspeacker

  4. hXyVarXGVyTCrNxD
    hXyVarXGVyTCrNxD
    ACZ5ASPkE6SoX5cB
    aanTQirdyFMmmxO3

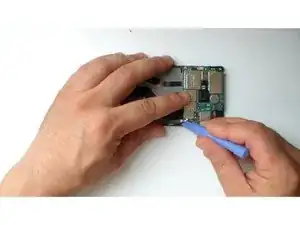

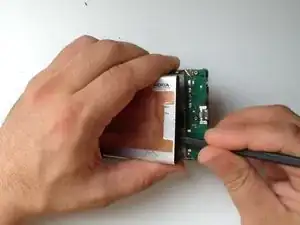

    • Disconnect the battery flex cable.

    • Unstick the metal foil from the logic board.

    • Use a plastic tool with a thin tip and unstuck the battery from the middle frame.

    • Battery - BP-4GWA, 2000mAh, 3.7V, 7.4Vh

  5. 1kHLabjZGdqxjmGG
    1kHLabjZGdqxjmGG
    cvp2eyXKpPTtLcKN
    uSZelw5hQSAPnrAC

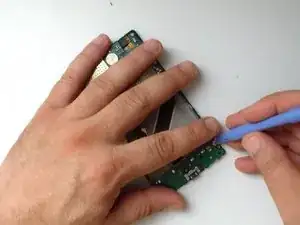

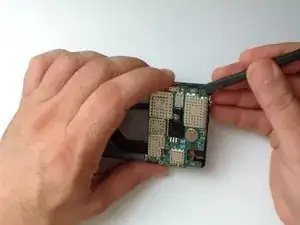

    • Disconnect the Antenna cable from the Logic board and from the Charging Dock board and remove it.

  6. IKb2SavJqaMRO24b
    IKb2SavJqaMRO24b
    wsSoDAsZWbHlW25f
    SvnB6weHDb6WDMTE

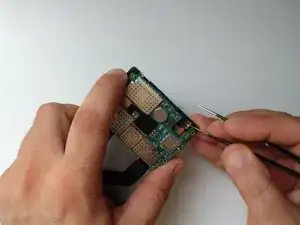

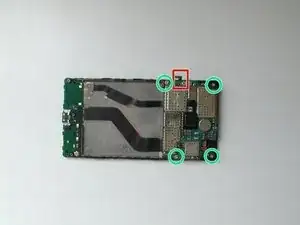

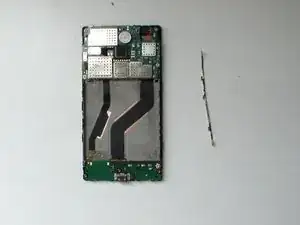

    • Disconnect the Volume, Power and camera buttons flex cable.

    • Remove the 4x Torx T4 screws.

    • Slightly lift the board

    • Slowly and gently unstuck the light sensor from the middle frame.

  7. Hjx1ofHCWsiRGkQU
    Hjx1ofHCWsiRGkQU
    CQVlfGeTbQlmEsNB
    QIvnc112vcyKKfAN

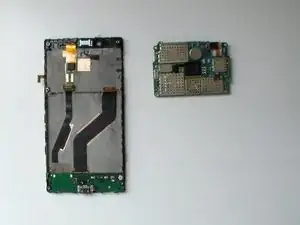

    • Disconnect the Display Assembly flex cable.

    • Disconnect the Charging Dock Board flex cable.

    • Remove the Main board.

  8. MFAhKQIRqsTy3g3Q
    MFAhKQIRqsTy3g3Q
    42pYGM3UThAOG6SM

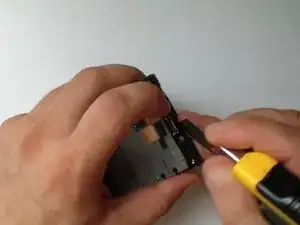

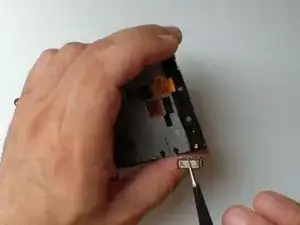

    • Use a tool with a sharp point and carefully unstuck the earpiece.

Conclusion

To reassemble your device, follow these instructions in reverse order.
