Nook HD+ Antenna Replacement

Written By: Elijah Gonsalves
  • Comments: 0
Nook HD+ Antenna Replacement

Difficulty

Moderate

Steps

8

Time Required

15 - 30 minutes

Introduction

This replacement guide for the Nook HD+ requires the use of a soldering iron which should not be used by children, and if mishandled could lead to extreme injury.

  1. 2xVii6SGUEmMLHLP

    • Pry the front frame off of the nook by wedging the plastic opening piece between the frame and the nook.

  2. qEosEOWCIHOLtdFY
    qEosEOWCIHOLtdFY
    XpTSPUbuIlUCTHba

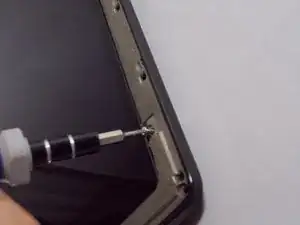

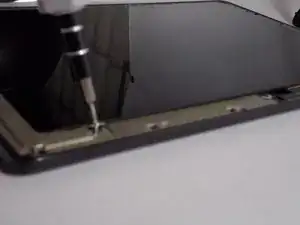

    • Remove every visible screw from the front of the nook using the T-4 attachment for the screwdriver in the iFixit screwdriver kit.

  3. 4YwaxODlEdore1fC
    4YwaxODlEdore1fC
    HrGZ3LyeFutmeLF1

    • Carefully remove the center chassis from the bottom frame.

  4. wMBGnaNEpVaQZZF2
    wMBGnaNEpVaQZZF2
    SqUD2MdZSEgaIuTq
    HCyGHGKRMj24xTHB

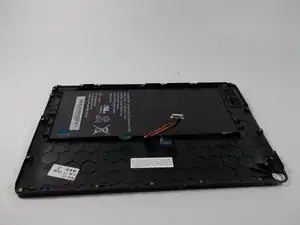

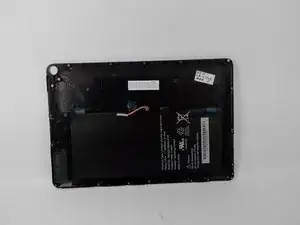

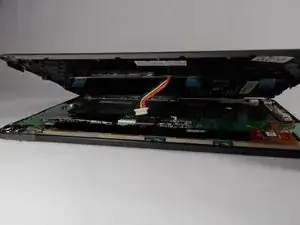

    • Detach the battery ribbon from the motherboard.

  5. g2pfnARwVHTVm1Ds

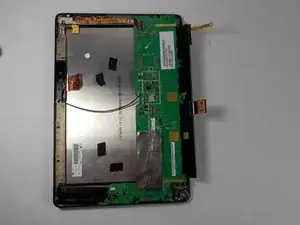

    • Flip the center chassis so that the screen is facing down, and the hole is positioned in the bottom right corner.

  6. GWLAeLXhMXQIv3Rc
    GWLAeLXhMXQIv3Rc
    w6pWFjeVX2fHMgtx

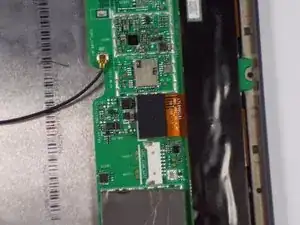

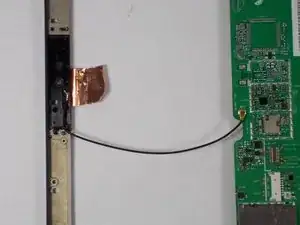

    • Remove the wire from the attachment on the motherboard (this wire un-clips).

  7. VWCliBfqtyfEjin6
    VWCliBfqtyfEjin6
    lnoLK31GZUxHP3oK

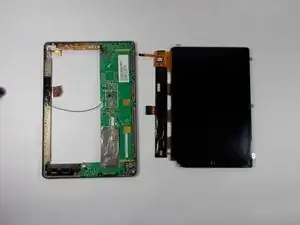

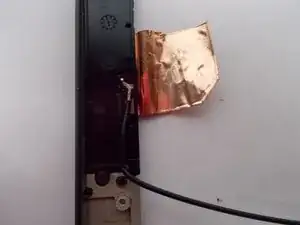

    • Apply soldering iron to the wire where it connects on the frame side. Remove wire when the solder is molten.

  8. TOTSHcX3lWSKBN3o
    TOTSHcX3lWSKBN3o
    HpatlAnLoRkUCRWX

    • Replace new antenna following all the steps in reverse.

Conclusion

To reassemble your device, follow these instructions in reverse order.
