Nostalgia GCM200 Heating Coil Replacement

Written By: Xingdi Zhou
  • Comments: 0
Nostalgia GCM200 Heating Coil Replacement

Difficulty

Easy

Steps

4

Time Required

15 minutes

Introduction

This replacement guide shows how to change the heating coils.

  1. s4RmkfZ2rRrQjNQP
    s4RmkfZ2rRrQjNQP

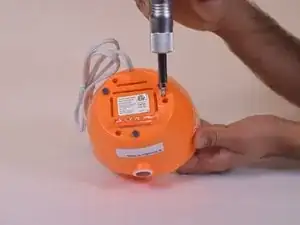

    nk5LcHgpTGjeMmH6

    • Remove the two 1.3 mm Phillips #2 screws.

    • Remove the S6 spanner screw.

    • Carefully place these three screws somewhere safe to use later in reassembly.

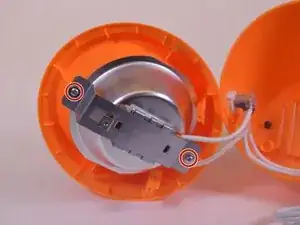

  2. FUDqoPOHUgsC2VWk

    • Split the device in half to expose the internal parts of the device.

    • Again, there are two more Phillips screws to remove.

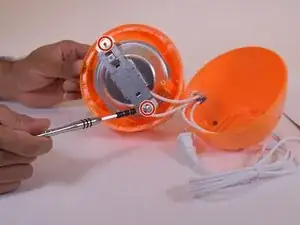

  3. OFfL2SEnaZKFsdJO

    • Remove the two screws from both sides of the heating coil.

  4. VeFQqUJMviRIvoAW

    • Replace the heating pan, & you done with replacement.

Conclusion

To reassemble your device, follow these instructions in reverse order.
