Nutri Ninja Ninja Blender Duo BL641 Fan Replacement

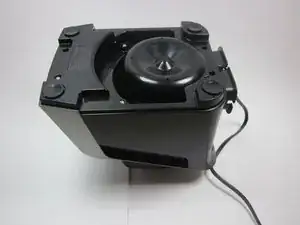

Turn blender upside down

Remove these six screws (0.5 inch 5 gauge phillip's head)

Note: 2 of the screws will be star shaped circled in blue

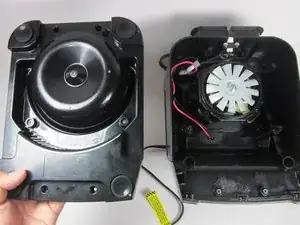

Lift the bottom panel off

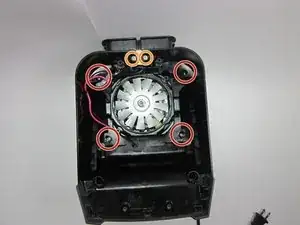

Unscrew and remove these six phillip's screws. (0.5 inch 5 gauge phillips)

Note: The screws circled in blue are 1/8" longer and have a slightly different top than the rest. These are the only two screws that are different than the rest.

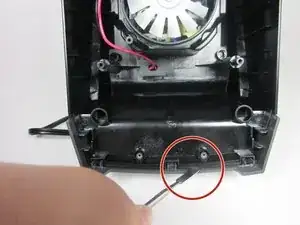

Insert pry tool in between the two plastic pieces to separate them

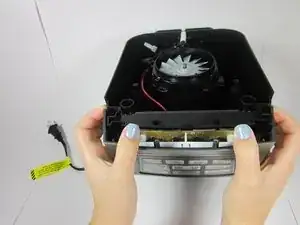

Move pry tool back and forth from right to left until the two pieces begin to separate as shown.

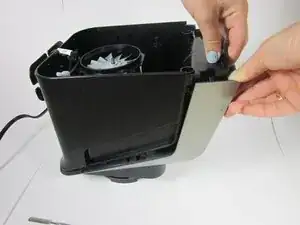

Pry the two pieces apart with your hands as shown in the picture to finish separating the pieces.

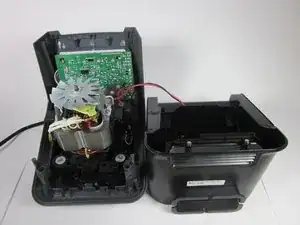

This completes the disassembly of the main body of the blender so you can continue to perform replacements on the internal parts.

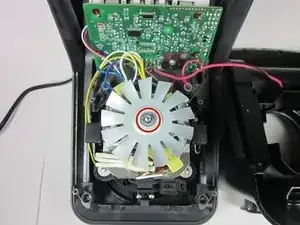

Remove this hex nut with the adjustable wrench.

Be sure to hold the fan still GENTLY while unscrewing the nut so the bolt does not spin with the nut.

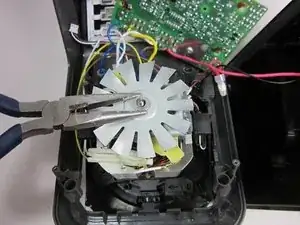

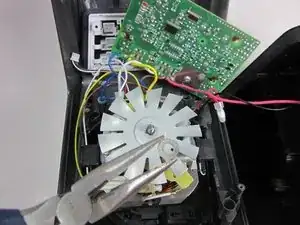

Grab the washer with pliers and twist/pull it off of the threaded rod.

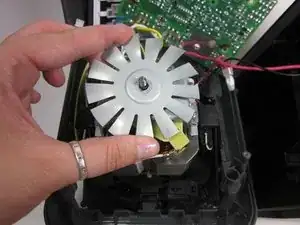

Grab the fan gently and pull it off
