Olympus Stylus Tough-6000 On/Off Button Replacement

Written By: Shannon Cooney
  • Comments: 0
Olympus Stylus Tough-6000 On/Off Button Replacement

Difficulty

Easy

Steps

6

Time Required

15 minutes

Introduction

This guide will show clear and easy steps on how to replace the On/Off button.

  1. NwmWWUHlGBKdtSOh

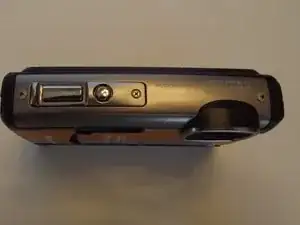

    • First sit the camera on its bottom. You will be working on the on/off button.

  2. giAyT1oEw4ZUdvKJ

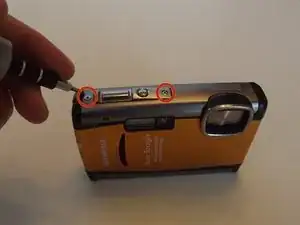

    • Place camera upward.

    • You will notice two screws near the on/off button.

    • Use your Phillips #00 screwdriver to unscrew the two screws.

  3. xjdEToZYm5xKeZpo

    • After unscrewing the two screws near the on/off button you will notice a single screw to your right.

    • Unscrew the single screw with your Phillips #00 screwdriver.

    • This will allow you to pry the panel off.

  4. x5ZAyxJmD5EXRmUX

    • Grab your plastic opening tool and start prying off the panel.

  5. 6FqvHVWCOKrW32Jl

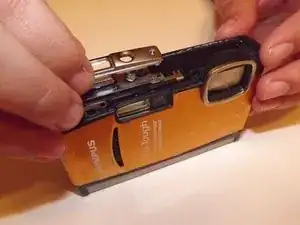

    • Once the panel is lifted you will want to lift up the cover for the on/off button.

    • The actual on/off button is very small and loose so make sure to be careful with it!

  6. JoE6KgRBEkIUIIG2

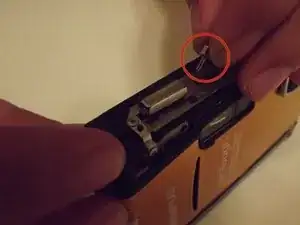

    • You have reached the on/off button.

    • You can now replace it!

Conclusion

To reassemble your device, follow these instructions in reverse order.
