Optiplex 7010 DT Graphics Card Replacement

Written By: guardian10
  • Comments: 0
Optiplex 7010 DT Graphics Card Replacement

Difficulty

Easy

Steps

5

Time Required

1 - 2 minutes

Introduction

How to replace Graphics card in an Optiplex 7010 Slim

  1. MHOfmulfyfVgtuGv
    MHOfmulfyfVgtuGv
    TIS6oiYyB6HOQTrI

    • Pull the lever on the side of the computer outward.

  2. aSUIdcelKXxfIdCP

    • Pull the side panel away from the rest of the computer.

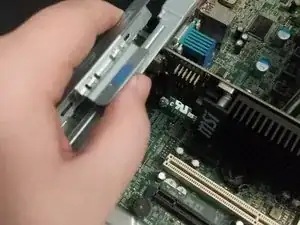

  3. HFlQpYD5KcVSCXLU
    HFlQpYD5KcVSCXLU
    kBqROCmKqTU3RNdS

    • Unlatch the GPU support bracket as shown.

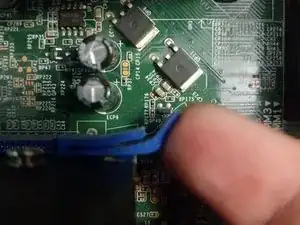

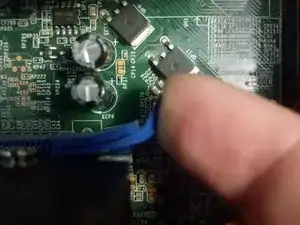

  4. DYVXBdiTCJKwO6vD
    DYVXBdiTCJKwO6vD
    QofUNQAaESKCr62K

    • Pull up on the PCIe tab as shown.

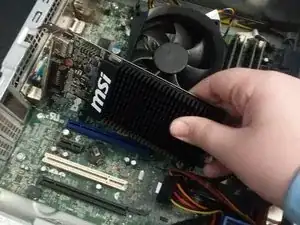

  5. uHUtX6ElXUclqON1

    • While still holding the PCIe tab up, pull the GPU out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
